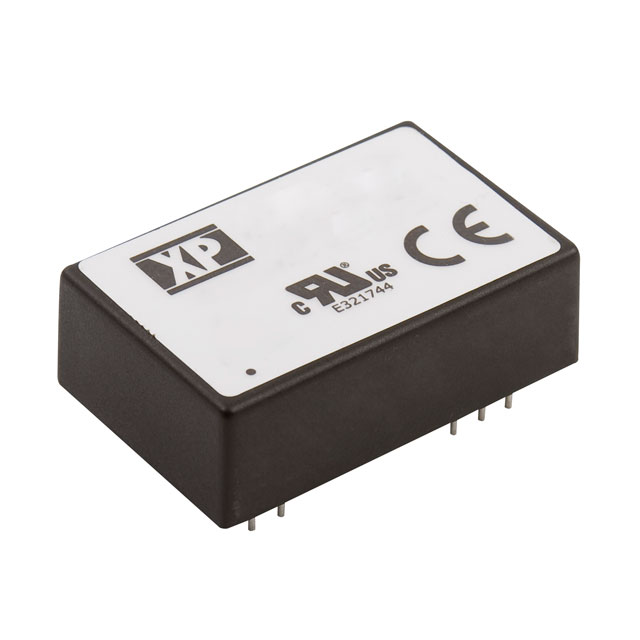

JHM0612S05
ActiveXP POWER
DC DC CONVERTER 5V 6W
Deep-Dive with AI
Search across all available documentation for this part.
JHM0612S05
ActiveXP POWER
DC DC CONVERTER 5V 6W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JHM0612S05 |
|---|---|
| Applications | Medical |
| Current - Output (Max) [Max] | 1.2 A |
| Efficiency | 78 % |
| Features | SCP, UVLO, OVP, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 24-DIP Module, 7 Leads |
| Power (Watts) | 6 W |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 10.4 mm |
| Size / Dimension [z] | 0.41 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 17 V |
| Voltage - Input (Min) [Min] | 10 VDC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 36.26 | |
| 5 | $ 35.17 | |||
| 10 | $ 34.08 | |||
| 25 | $ 32.63 | |||
| 100 | $ 30.46 | |||
Description
General part information
JHM0612 Series
Isolated Module DC DC Converter 1 Output 5V 1.2A 10V - 17V Input
