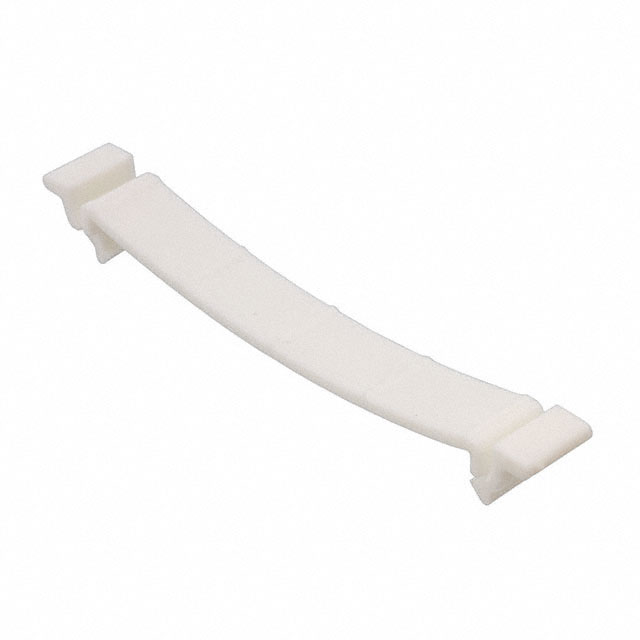

FCCS-4

Active

Essentra Access Solutions

FASTENER, FLAT CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 57 MM, 7 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, FLAT CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 57 MM, 7 MM

Technical Specifications

Parameters and characteristics for this part

Specification	FCCS-4

Color	Natural
Features	Flame Retardant
Height [z]	7.36 mm
Height [z]	0.29 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Material Thickness	1.2 mm
Material Thickness	0.047 in
Mounting Type	Push In
Opening Size [x]	44.96 mm
Opening Size [x]	1.77 in
Opening Size [z]	3.71 mm
Opening Size [z]	0.146 in
Panel Hole Size [x]	2.59 mm
Panel Hole Size [x]	0.102 "
Panel Hole Size [y]	5.31 mm
Panel Hole Size [y]	0.209 "
Panel Thickness	1.57 mm
Panel Thickness	0.79 mm
Panel Thickness [Max]	0.062 in
Panel Thickness [Min]	0.031 "
Type	Flat, Clip
Type Attributes	Locking
Width [y]	0.28 in
Width [y]	7.11 mm

Part	Length [x]	Length [x]	Panel Hole Size [x]	Panel Hole Size [y]	Panel Hole Size [x]	Panel Hole Size [y]	Width [y]	Width [y]	Features	Opening Size [y]	Opening Size [x]	Opening Size [y]	Opening Size [x]	Material Flammability Rating	Type Attributes	Height [z]	Height [z]	Panel Thickness [Min]	Panel Thickness	Panel Thickness	Panel Thickness [Max]	Material Thickness	Material Thickness	Color	Material	Type	Mounting Type	Opening Size [z]	Opening Size [z]
Essentra Access Solutions FCCS-5	2.83 in	71.88 mm	2.59 mm	5.31 mm	0.102 "	0.209 "	0.28 in	7.11 mm	Flame Retardant	3.71 mm	59.94 mm	0.146 in	2.36 in	UL94 V-0	Locking	7.36 mm	0.29 in	0.031 "	1.57 mm	0.79 mm	0.062 in	0.059 in	1.5 mm	Natural	Polyamide (PA66) Nylon 6/6	Clip Flat	Push In
Essentra Access Solutions FCCS-4			2.59 mm	5.31 mm	0.102 "	0.209 "	0.28 in	7.11 mm	Flame Retardant		44.96 mm		1.77 in	UL94 V-0	Locking	7.36 mm	0.29 in	0.031 "	1.57 mm	0.79 mm	0.062 in	0.047 in	1.2 mm	Natural	Polyamide (PA66) Nylon 6/6	Clip Flat	Push In	3.71 mm	0.146 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Flat Natural Push In 1.770" L x 0.146" H (44.96mm x 3.71mm)
