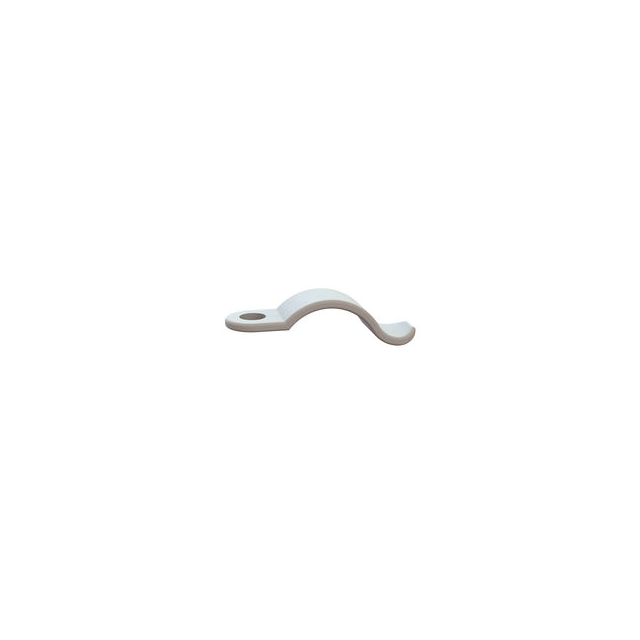

22SCP375132A

Obsolete

Essentra Access Solutions

CBL CLIP SPRING NATURAL FASTENER

Search across all available documentation for this part.

Obsolete

Essentra Access Solutions

CBL CLIP SPRING NATURAL FASTENER

Technical Specifications

Parameters and characteristics for this part

Specification	22SCP375132A

Color	Natural
Height [z]	0.265 in
Height [z]	6.73 mm
Length	1.312 in
Length	33.33 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Material Thickness	0.06 in
Material Thickness	1.52 mm
Mounting Type	Fastener
Panel Hole Size	4.55 mm
Panel Hole Size [diameter]	0.179 in
Type	Clip, Spring
Width [x]	0.375 in
Width [x]	9.53 mm

Part	Material	Color	Height [z]	Height [z]	Type	Material Thickness	Material Thickness	Panel Hole Size [diameter]	Panel Hole Size	Width [x]	Width [x]	Length	Length	Material Flammability Rating	Mounting Type
Essentra Access Solutions 22SCP375132A	Polyamide (PA66) Nylon 6/6	Natural	0.265 in	6.73 mm	Clip Spring	0.06 in	1.52 mm	0.179 in	4.55 mm	0.375 in	9.53 mm	1.312 in	33.33 mm	UL94 V-2	Fastener

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Clip, Spring Natural Fastener

Technical documentation and resources

No documents available
