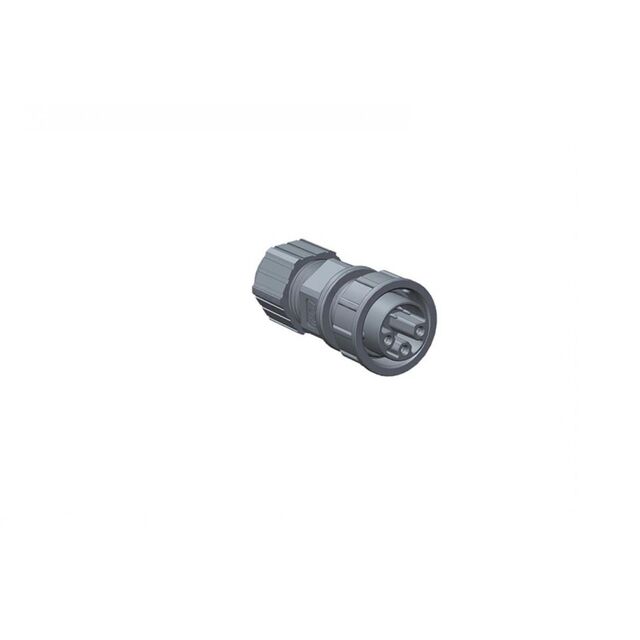

CBU-08BFDA-TL7001
ActiveAmphenol LTW
CERES, MIDDLE SIZE, PLASTIC, 10A+2A, 08 PINS, FEMALE CONNECTOR, FEMALE (POWER) + MALE (SIGNAL) CONTACT, STRAIGHT, 3 POINTS LOCK,
Deep-Dive with AI
Search across all available documentation for this part.
CBU-08BFDA-TL7001
ActiveAmphenol LTW
CERES, MIDDLE SIZE, PLASTIC, 10A+2A, 08 PINS, FEMALE CONNECTOR, FEMALE (POWER) + MALE (SIGNAL) CONTACT, STRAIGHT, 3 POINTS LOCK,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CBU-08BFDA-TL7001 |
|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Cable Opening [Max] [diameter] | 0.378 in |
| Cable Opening [Max] [diameter] | 9.6 mm |
| Cable Opening [Min] [diameter] | 7.6 mm |
| Cable Opening [Min] [diameter] | 0.299 in |
| Color | Black |
| Connector Type | Male Pins, Plug, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 2 A, 10 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shell Size - Insert | C |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CBU-08BFDA Series
8 Position Circular Connector Plug, Female Sockets and Male Pins Solder Cup
