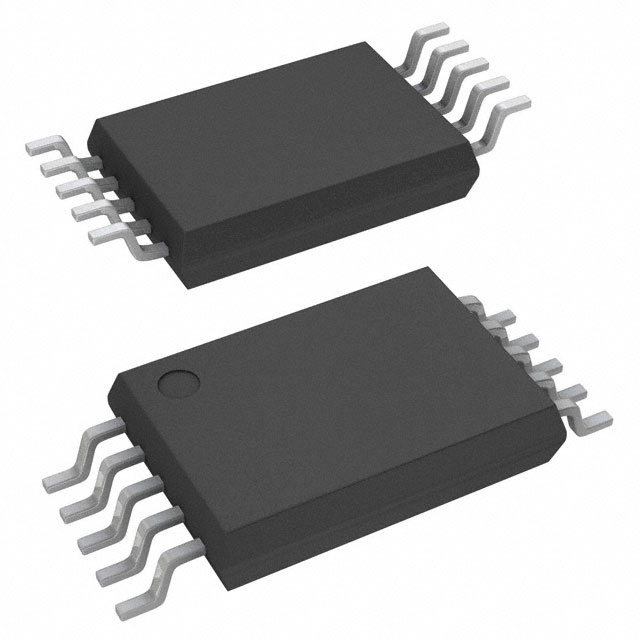

AN8015SH-E1

Obsolete

Panasonic Industrial Automation Sales

IC REG CTRLR BUCK/BOOST 10-SSOP

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

IC REG CTRLR BUCK/BOOST 10-SSOP

Technical Specifications

Parameters and characteristics for this part

Part	Control Features	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Supplier Device Package	Function	Mounting Type	Synchronous Rectifier	Output Configuration	Duty Cycle (Max) [Max]	Number of Outputs	Clock Sync	Package / Case	Package / Case	Package / Case	Output Phases	Frequency - Switching [Min]	Frequency - Switching [Max]	Topology
Panasonic Industrial Automation Sales AN8015SH-E1V	Frequency Control	3.6 V	34 V	-30 °C	85 °C	Transistor Driver	10-SSOP	Step-Down Step-Up	Surface Mount		Positive or Negative	90 %	1		0.169 in	4.3 mm	10-FSOP	1	2 kHz	500 kHz	Boost Buck
Panasonic Industrial Automation Sales AN8015SH-E1	Frequency Control	3.6 V	34 V	-30 °C	85 °C	Transistor Driver	10-SSOP	Step-Down Step-Up	Surface Mount		Positive or Negative	90 %	1		0.169 in	4.3 mm	10-FSOP	1	2 kHz	500 kHz	Boost Buck

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Buck, Boost Regulator Positive or Negative Output Step-Up, Step-Down DC-DC Controller IC 10-SSOP
