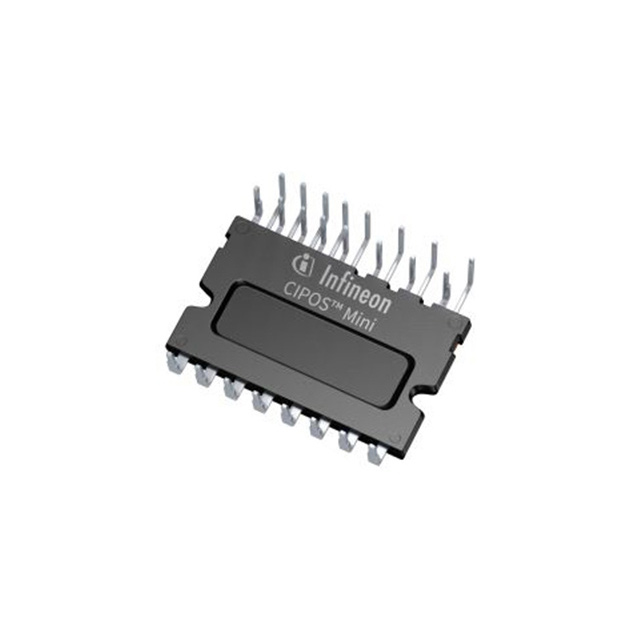

IM513L6AXKMA1

Obsolete

Infineon Technologies

IPM MOSFET 650V 24-PIN MDIP TUBE AUTOMOTIVE AEC-Q100

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IPM MOSFET 650V 24-PIN MDIP TUBE AUTOMOTIVE AEC-Q100

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Package / Case	Technology	Interface	Motor Type - Stepper	Supplier Device Package	Output Configuration	Applications	Current - Output	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Function
Infineon Technologies IM513L6AXKMA1	24-PowerDIP Module	1.028 in 26.1 mm	Power MOSFET	PWM	Multiphase	24-DIP	Half Bridge (3)	General Purpose	10 A	125 °C	-40 °C	Through Hole	13.5 V	18.5 V	Driver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 8.42
Newark	Each	1	$ 12.05

General part information

Multiphase Motor Driver Power MOSFET PWM 24-DIP

Technical documentation and resources

No documents available
