Q-2704R000M003M

Active

Amphenol Custom Cable

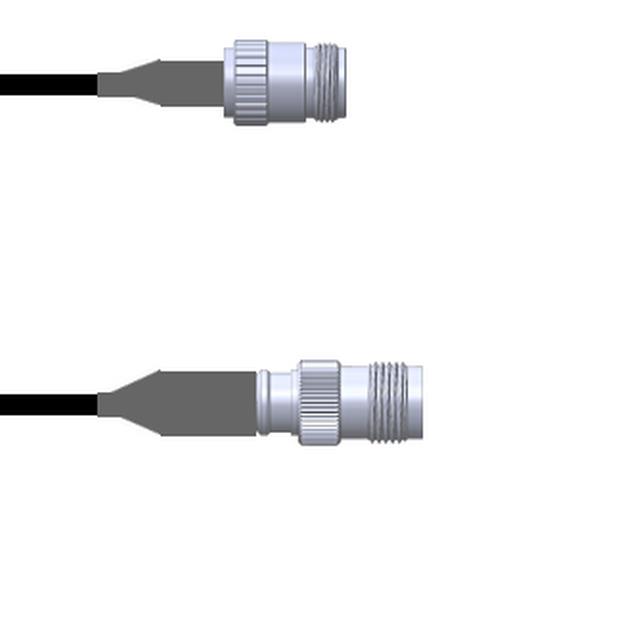

CBL ASSY NTYPE-TNC JCK-JCK 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2704R000M003M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JCK-JCK 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2704R000M003M

1st Connector	N-Type Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	LMR 240
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms

Q-2704R0 Series

Part	Frequency - Max [Max]	Length	Length	2nd Contact Gender	Color	1st Connector Mounting Type	1st Connector	Features	Overall Impedance	Cable Type	2nd Connector	2nd Connector Mounting Type	1st Contact Gender	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2704R000M0.5M	6000 MHz	50 cm	19.69 "	Female	Black	Free Hanging (In-Line)	N-Type Jack	Shielded	50 Ohms	LMR 240	TNC Jack	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-2704R000M048i	6000 MHz	1200 mm	48 in	Female	Black	Free Hanging (In-Line)	N-Type Jack	Shielded	50 Ohms	LMR 240	TNC Jack	Free Hanging (In-Line)	Female	4 ft
Amphenol Custom Cable Q-2704R000M012i	6000 MHz	304.8 mm	12 "	Female	Black	Free Hanging (In-Line)	N-Type Jack	Shielded	50 Ohms	LMR 240	TNC Jack	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-2704R000M018i	6000 MHz			Female	Black	Free Hanging (In-Line)	N-Type Jack	Shielded	50 Ohms	LMR 240	TNC Jack	Free Hanging (In-Line)	Female		457.2 mm	457.2 mm
Amphenol Custom Cable Q-2704R000M1.5M	6000 MHz	1.5 m	59.1 in	Female	Black	Free Hanging (In-Line)	N-Type Jack	Shielded	50 Ohms	LMR 240	TNC Jack	Free Hanging (In-Line)	Female	4.9 ft
Amphenol Custom Cable Q-2704R000M002M	6000 MHz	2 m	78.7 in	Female	Black	Free Hanging (In-Line)	N-Type Jack	Shielded	50 Ohms	LMR 240	TNC Jack	Free Hanging (In-Line)	Female	6.6 ft
Amphenol Custom Cable Q-2704R000M060i	6000 MHz	1.5 m	5 '	Female	Black	Free Hanging (In-Line)	N-Type Jack	Shielded	50 Ohms	LMR 240	TNC Jack	Free Hanging (In-Line)	Female	5 ft
Amphenol Custom Cable Q-2704R000M001M	6000 MHz	1 m	39.4 in	Female	Black	Free Hanging (In-Line)	N-Type Jack	Shielded	50 Ohms	LMR 240	TNC Jack	Free Hanging (In-Line)	Female	3.3 ft
Amphenol Custom Cable Q-2704R000M024i	6000 MHz	609.6 mm	24 "	Female	Black	Free Hanging (In-Line)	N-Type Jack	Shielded	50 Ohms	LMR 240	TNC Jack	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-2704R000M003M	6000 MHz	3 m	118.1 in	Female	Black	Free Hanging (In-Line)	N-Type Jack	Shielded	50 Ohms	LMR 240	TNC Jack	Free Hanging (In-Line)	Female	9.8 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 114.06
		25	$ 106.40
		50	$ 98.74
		100	$ 92.17
		250	$ 86.70

Description

General part information

Q-2704R0 Series

Cable Assembly Coaxial N-Type to TNC LMR 240 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available
