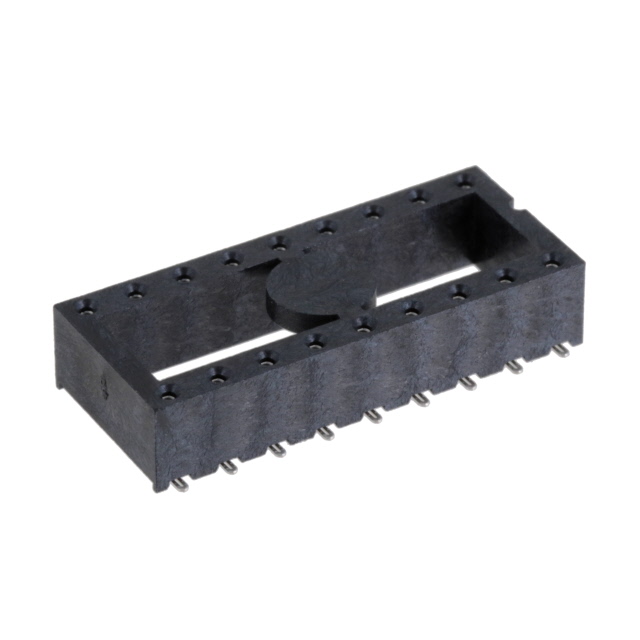

ICF-318-T-O
ActiveSamtec Inc.
CONN IC DIP SOCKET 18POS TIN
Deep-Dive with AI
Search across all available documentation for this part.
ICF-318-T-O
ActiveSamtec Inc.
CONN IC DIP SOCKET 18POS TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ICF-318-T-O |
|---|---|
| Contact Finish - Post | Tin |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Features | Open Frame |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions or Pins (Grid) | 18 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Type | 0.3 " |
| Type | 7.62 mm |
| Type | DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.56 | |
| 10 | $ 2.17 | |||
| 25 | $ 2.04 | |||
| 50 | $ 1.94 | |||
| 100 | $ 1.85 | |||
| 250 | $ 1.73 | |||
| 500 | $ 1.65 | |||
| 1000 | $ 1.57 | |||
| 2500 | $ 1.51 | |||
Description
General part information
ICF-318 Series
18 (2 x 9) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Surface Mount
