SS22SDH2LE

NKK Switches

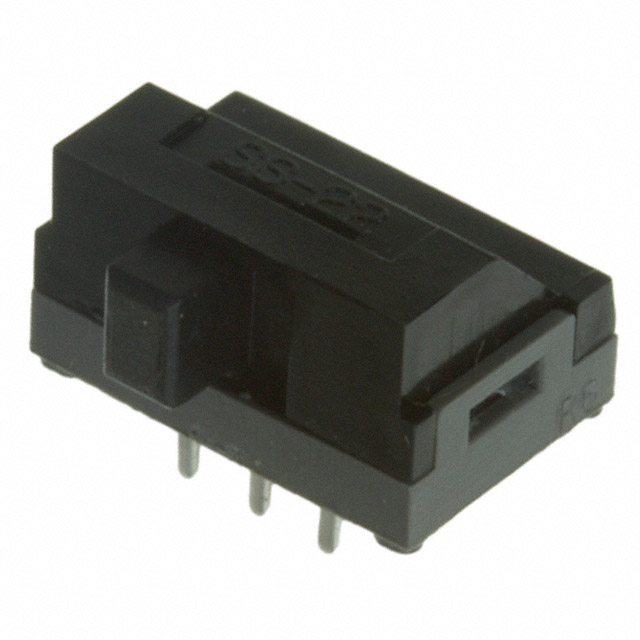

ULTRA-MINIATURE ILLUMINATED SLIDE; PART STATUS: ACTIVE; POLES: DPDT; CONTACT TIMING: SHORTING (MBB); CIRCUITS: ON-ON; CURRENT RATING: 100MA (DC); RATING (DC): 30V; ACTUATOR TYPE: ILLUMINATED; ACTUATOR LENGTH: 2.50MM; CONTACT MATERIAL: PHOSPHOR BRONZE; CONTACT FINISH: SILVER; MOUNTING TYPE: THROUGH HOLE, RIGHT ANGLE; TERMINATION STYLE: PC PIN; RATING: 0.1

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SS22SDH2LE

NKK Switches

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS22SDH2LE

Actuator Length [x]	2.5 mm
Actuator Material	Polyacetal
Actuator Type	Illuminated
Circuit	DPDT
Contact Finish	Silver
Contact Material	Phosphor Bronze
Contact Timing	Shorting
Current Rating (Amps)	100 mA
Electrical Life	10000 Cycles
Mechanical Life	10000 Steps
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-15 °C
Switch Function	On-On
Switch Travel	2 mm
Termination Style	PC Pin
Voltage Rating - DC	30 V

SS22SD Series

Part	Contact Finish	Circuit	Switch Travel	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Switch Function	Contact Timing	Termination Style	Actuator Length [x]	Actuator Type	Actuator Material	Mechanical Life	Contact Material	Mounting Type	Electrical Life
NKK Switches SS22SDH2LE	Silver	DPDT	2 mm	30 V	-15 °C	60 °C	100 mA	On-On	Shorting	PC Pin	2.5 mm	Illuminated	Polyacetal	10000 Steps	Phosphor Bronze	Through Hole Right Angle	10000 Cycles
NKK Switches SS22SDH2LC	Silver	DPDT	2 mm	30 V	-15 °C	60 °C	100 mA	On-On	Shorting	PC Pin	2.5 mm	Illuminated	Polyacetal	10000 Steps	Phosphor Bronze	Through Hole Right Angle	10000 Cycles
