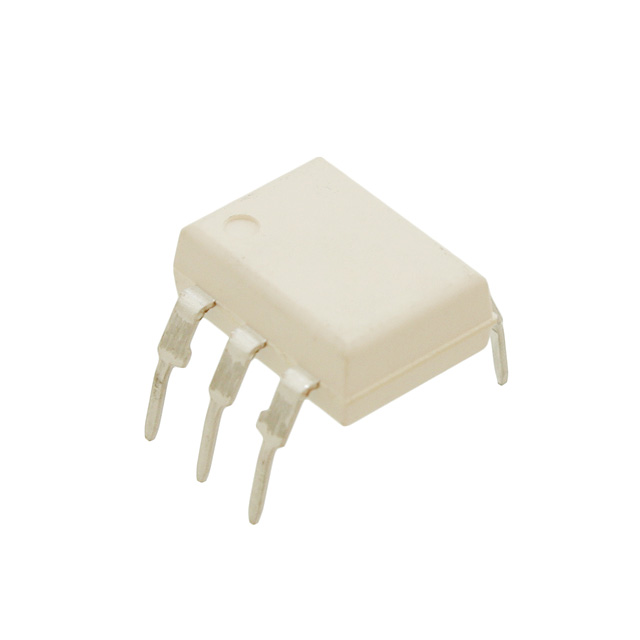

TIL117

Active

Everlight Electronics Co Ltd

DC-IN 1-CH TRANSISTOR WITH BASE DC-OUT 6-PIN PDIP TUBE

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

DC-IN 1-CH TRANSISTOR WITH BASE DC-OUT 6-PIN PDIP TUBE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TIL117	TIL117 Series

Current - DC Forward (If) (Max) [Max]	60 mA	60 mA
Current Transfer Ratio (Min) [Min]	50 %	50 %
Input Type	DC	DC
Mounting Type	Through Hole	Through Hole, Surface Mount
Number of Channels	1	1
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	6-DIP	6-DIP, 6-SMD, Gull Wing
Package / Case	0.3 in	0.3 in
Package / Case	7.62 mm	7.62 - 10.16 mm
Package / Case	-	10.16 mm
Rise / Fall Time (Typ) [custom]	8 µs	8 µs
Rise / Fall Time (Typ) [custom]	6 µs	6 µs
Supplier Device Package	6-DIP	6-DIP, 6-SMD
Turn On / Turn Off Time (Typ) [custom]	10 µs	10 µs
Turn On / Turn Off Time (Typ) [custom]	9 µs	9 µs
Vce Saturation (Max) [Max]	400 mV	400 mV
Voltage - Forward (Vf) (Typ)	1.32 V	1.32 V

DC-IN 1-CH TRANSISTOR WITH BASE DC-OUT 6-PIN PDIP TUBE

Part	Turn On / Turn Off Time (Typ) [custom]	Turn On / Turn Off Time (Typ) [custom]	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Mounting Type	Number of Channels	Vce Saturation (Max) [Max]	Current Transfer Ratio (Min) [Min]	Input Type	Current - DC Forward (If) (Max) [Max]	Package / Case	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Package / Case
Everlight Electronics Co Ltd TIL117	10 µs	9 µs	6-DIP	1.32 V	Through Hole	1	400 mV	50 %	DC	60 mA	6-DIP	0.3 in	7.62 mm	-55 °C	110 °C	8 µs	6 µs
Everlight Electronics Co Ltd TIL117S1(TA)	10 µs	9 µs	6-SMD	1.32 V	Surface Mount	1	400 mV	50 %	DC	60 mA	6-SMD, Gull Wing			-55 °C	110 °C	8 µs	6 µs
Everlight Electronics Co Ltd TIL117-V	10 µs	9 µs	6-DIP	1.32 V	Through Hole	1	400 mV	50 %	DC	60 mA	6-DIP	0.3 in	7.62 mm	-55 °C	110 °C	8 µs	6 µs
Everlight Electronics Co Ltd TIL117M	10 µs	9 µs	6-DIP	1.32 V	Through Hole	1	400 mV	50 %	DC	60 mA	6-DIP		10.16 mm	-55 °C	110 °C	8 µs	6 µs	10.16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-DIP
