M6,AL BULK

Active

Serpac

BOX ABS ALMOND 4.15"L X 2.4"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 4.15"L X 2.4"W

Technical Specifications

Parameters and characteristics for this part

Specification	M6,AL BULK

Area (L x W)	64.3 cm²
Area (L x W)	9.96 in²
Color	Almond
Container Type	Box
Features	Battery Compartment, 9V and AA
Height [z]	0.85 in
Height [z]	21.59 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	4.15 "
Size / Dimension [x]	105.41 mm
Size / Dimension [y]	2.4 "
Size / Dimension [y]	60.96 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.11 lb
Weight	49.9 g

Part	Features	Area (L x W)	Area (L x W)	Ratings	Container Type	Material Flammability Rating	Color	Thickness	Thickness	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material	Weight	Weight	Height [z]	Height [z]
Serpac M6,AL BULK	9V and AA Battery Compartment	64.3 cm²	9.96 in²	IP40	Box	UL94 HB	Almond	2.54 mm	0.1 in	4.15 "	2.4 "	105.41 mm	60.96 mm	Plastic ABS	0.11 lb	49.9 g	0.85 in	21.59 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.71

General part information

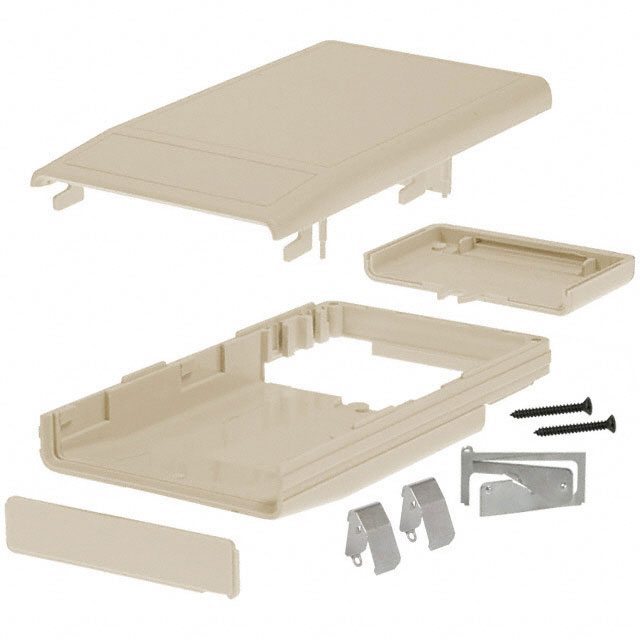

Box Plastic, ABS Almond Hand Held, Split Sides and End Panel(s) 4.150" L x 2.400" W (105.41mm x 60.96mm) X 0.850" (21.59mm)

Technical documentation and resources

No documents available
