6857-0-15-01-47-01-10-0

Active

Mill-Max Manufacturing Corp.

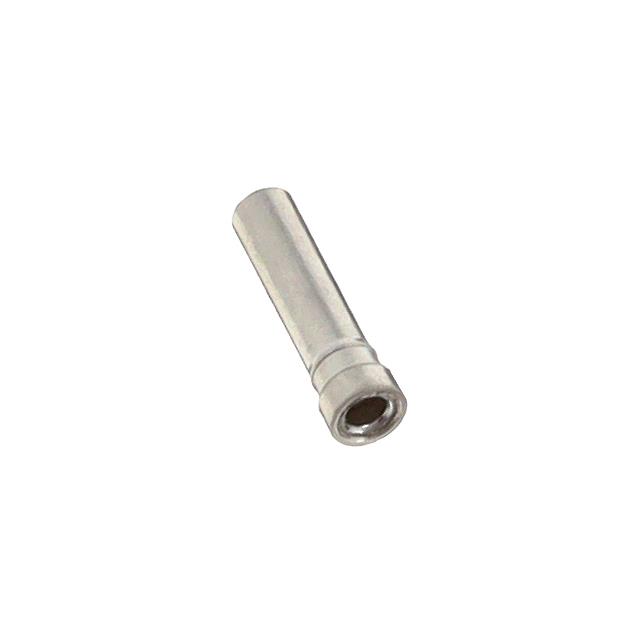

CONN RECEPT PIN .025-.037" .280"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6857-0-15-01-47-01-10-0

Active

Mill-Max Manufacturing Corp.

CONN RECEPT PIN .025-.037" .280"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6857-0-15-01-47-01-10-0

Accepts Pin Diameter [Max]	0.037 "
Accepts Pin Diameter [Max]	0.94 mm
Accepts Pin Diameter [Min]	0.64 mm
Accepts Pin Diameter [Min]	0.025 "
Accepts Square Pin Size [diameter]	0.64 mm
Accepts Square Pin Size [diameter]	0.025 in
Contact Finish	Tin-Lead
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Length - Overall [x]	0.28 in
Length - Overall [x]	7.11 mm
Mounting Hole Diameter [diameter]	1.57 mm
Mounting Hole Diameter [diameter]	0.062 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Socket Depth	0.23 in
Socket Depth	5.84 mm
Tail Type	No Tail
Termination	Press-Fit

6857-0 Series

Part	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Socket Depth	Socket Depth	Tail Type	Accepts Square Pin Size [diameter]	Accepts Square Pin Size [diameter]	Termination	Contact Finish	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]
Mill-Max Manufacturing Corp. 6857-0-15-15-47-14-10-0	0.051 in	1.3 mm	0.23 in	5.84 mm	No Tail	0.64 mm	0.025 in	Press-Fit	Gold	0.037 "	0.64 mm	0.94 mm	0.025 "	1.57 mm	0.062 in	0.28 in	7.11 mm	Beryllium Copper	10 Áin	0.25 Ám	1.83 mm	0.072 in	-55 °C	125 °C
Mill-Max Manufacturing Corp. 6857-0-15-15-47-27-10-0	0.051 in	1.3 mm	0.23 in	5.84 mm	No Tail	0.64 mm	0.025 in	Press-Fit	Gold	0.037 "	0.64 mm	0.94 mm	0.025 "	1.57 mm	0.062 in	0.28 in	7.11 mm	Beryllium Copper	30 Áin	0.76 Ám	1.83 mm	0.072 in	-55 °C	125 °C
Mill-Max Manufacturing Corp. 6857-0-15-01-47-27-10-0	0.051 in	1.3 mm	0.23 in	5.84 mm	No Tail	0.64 mm	0.025 in	Press-Fit	Gold	0.037 "	0.64 mm	0.94 mm	0.025 "	1.57 mm	0.062 in	0.28 in	7.11 mm	Beryllium Copper	30 Áin	0.76 Ám	1.83 mm	0.072 in	-55 °C	125 °C
Mill-Max Manufacturing Corp. 6857-0-15-80-47-27-10-0	0.051 in	1.3 mm	0.23 in	5.84 mm	No Tail	0.64 mm	0.025 in	Press-Fit	Gold	0.037 "	0.64 mm	0.94 mm	0.025 "	1.57 mm	0.062 in	0.28 in	7.11 mm	Beryllium Copper	30 Áin	0.76 Ám	1.83 mm	0.072 in	-55 °C	125 °C
Mill-Max Manufacturing Corp. 6857-0-15-80-47-80-10-0	0.051 in	1.3 mm	0.23 in	5.84 mm	No Tail	0.64 mm	0.025 in	Press-Fit	Tin	0.037 "	0.64 mm	0.94 mm	0.025 "	1.57 mm	0.062 in	0.28 in	7.11 mm	Beryllium Copper	200 Áin	5.08 Ám	1.83 mm	0.072 in	-55 °C	125 °C
Mill-Max Manufacturing Corp. 6857-0-15-01-47-01-10-0	0.051 in	1.3 mm	0.23 in	5.84 mm	No Tail	0.64 mm	0.025 in	Press-Fit	Tin-Lead	0.037 "	0.64 mm	0.94 mm	0.025 "	1.57 mm	0.062 in	0.28 in	7.11 mm	Beryllium Copper	200 Áin	5.08 Ám	1.83 mm	0.072 in	-55 °C	125 °C
Mill-Max Manufacturing Corp. 6857-0-15-01-47-14-10-0	0.051 in	1.3 mm	0.23 in	5.84 mm	No Tail	0.64 mm	0.025 in	Press-Fit	Gold	0.037 "	0.64 mm	0.94 mm	0.025 "	1.57 mm	0.062 in	0.28 in	7.11 mm	Beryllium Copper	10 Áin	0.25 Ám	1.83 mm	0.072 in	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.18
		10	$ 0.99
		25	$ 0.95
		50	$ 0.93
		100	$ 0.89
		250	$ 0.81
		500	$ 0.73
		1000	$ 0.65
		3000	$ 0.59

Description

General part information

6857-0 Series

Pin Receptacle Connector 0.025" ~ 0.037" (0.64mm ~ 0.94mm) No Tail Press-Fit
