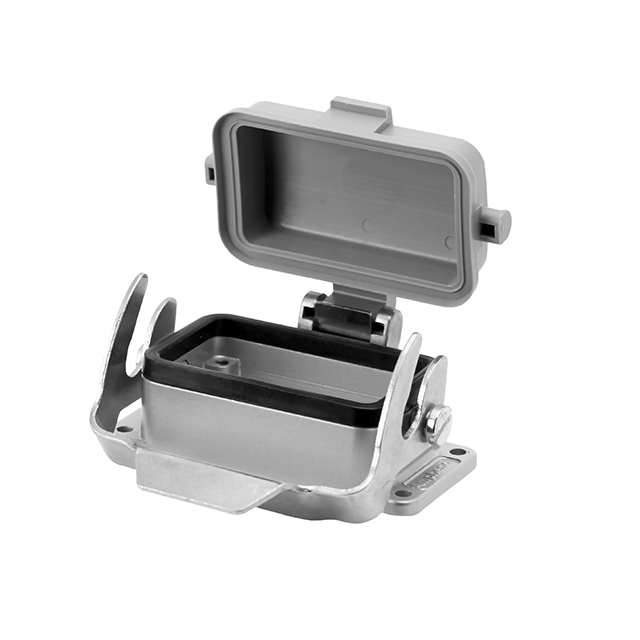

C146 10F010 002 1

Active

Amphenol Tuchel Industrial

CONN BASE BOTTOM ENTRY SZE10

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C146 10F010 002 1

Active

Amphenol Tuchel Industrial

CONN BASE BOTTOM ENTRY SZE10

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10F010 002 1

Connector Type	Base - Panel Mount
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E10
Size / Dimension [x]	93 mm
Size / Dimension [x]	3.661 inches
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	1.122 in
Size / Dimension [z]	28.5 mm
Style	Bottom Entry

C146 10F010 Series

Part	Lock Location	Size	Ingress Protection	Housing Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Style	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Thread Size	Features
Amphenol Tuchel Industrial C146 10F010 003 1	Locking Clip (1) on Base Bottom	E10	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	Base - Panel Mount	100 °C	-40 °C	Bottom Entry	1.122 in	43 mm	28.5 mm	1.693 in	93 mm	3.661 inches
Amphenol Tuchel Industrial C146 10F010 600 1	Locking Clip (2) on Base Bottom	E10	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	Base - Box Mount	100 °C	-40 °C	Side Entry	2.244 "	54 mm	57 mm	2.126 in	94 mm	3.701 "	PG16	Feed Through
Amphenol Tuchel Industrial C146 10F010 606 1	Locking Clip (1) on Base Bottom	E10	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	Base - Box Mount	100 °C	-40 °C	Side Entry	2.244 "	54 mm	57 mm	2.126 in	94 mm	3.701 "	PG16
Amphenol Tuchel Industrial C146 10F010 000 3	Locking Clip (2) on Base Bottom	E10	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	Base - Panel Mount	100 °C	-40 °C	Bottom Entry
Amphenol Tuchel Industrial C146 10F010 002 1	Locking Clip (2) on Hood	E10	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	Base - Panel Mount	100 °C	-40 °C	Bottom Entry	1.122 in	43 mm	28.5 mm	1.693 in	93 mm	3.661 inches
Amphenol Tuchel Industrial C146 10F010 500 1	Locking Clip (2) on Base Bottom	E10	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	Base - Box Mount	100 °C	-40 °C	Side Entry	2.244 "	54 mm	57 mm	2.126 in	94 mm	3.701 "	PG16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 20.20

Description

General part information

C146 10F010 Series

Base - Panel Mount Connector Bottom Entry E10 IP65 - Dust Tight, Water Resistant
