5302UL 002U1000

Active

Belden Inc.

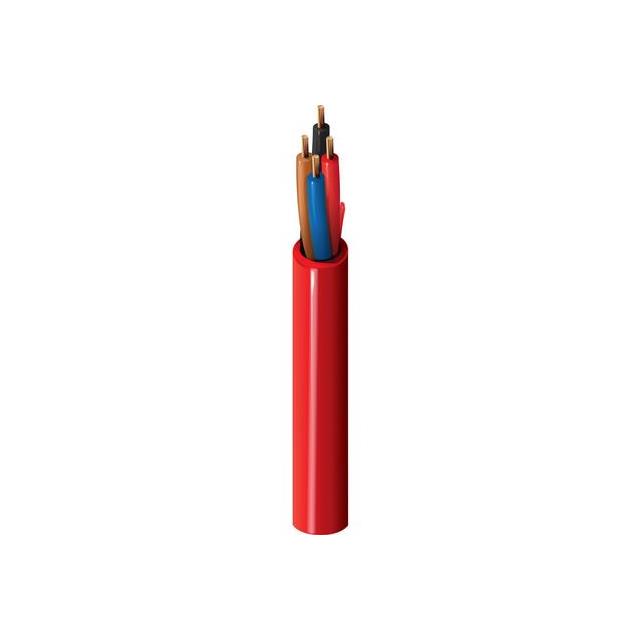

CABLE 4COND 18AWG RED

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 18AWG RED

Technical Specifications

Parameters and characteristics for this part

Specification	5302UL 002U1000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	4.67 mm
Jacket (Insulation) Diameter [diameter]	0.184 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Ratings	UL Style FPLR
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	18 AWG

Part	Features	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Voltage	Conductor Insulation	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Usage	Jacket (Insulation) Material	Wire Gauge	Conductor Material
Belden Inc. 5302UL 002U1000	Rip Cord	4	0.432 mm	0.017 in	Multi-Conductor	26 AWG	7	1000 ft	304.8 m	300 V	Polypropylene (PP)	Red	4.67 mm	0.184 in	UL Style FPLR	Alarm Safety	Poly-Vinyl Chloride (PVC) Riser	18 AWG	Copper Bare

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.35

General part information

4 Conductor Multi-Conductor Cable Red 18 AWG 1000.0' (304.8m)
