39S132-K00L5

Active

Rosenberger

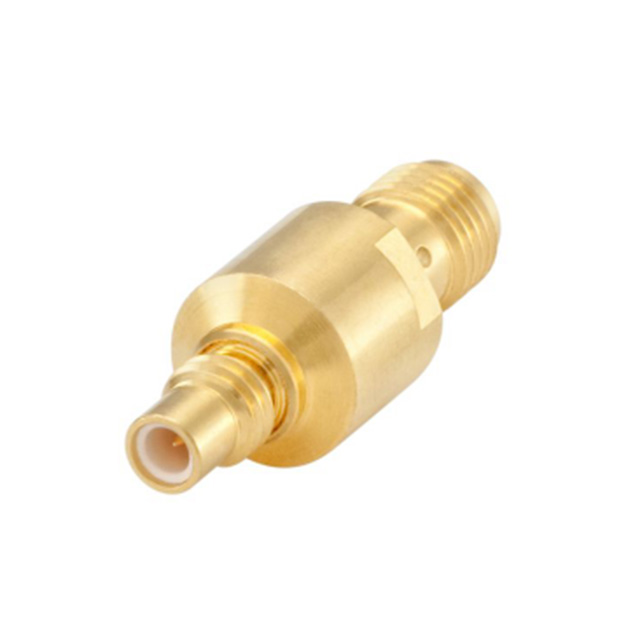

ADAPT SMA JACK - SMC PLUG

Search across all available documentation for this part.

Active

Rosenberger

ADAPT SMA JACK - SMC PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	39S132-K00L5

Adapter Series	SMA to SMC
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Beryllium Copper, Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	SMC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Convert To (Adapter End)	Adapter Series	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Center Contact Material	Style	Conversion Type	Frequency - Max [Max]	Body Material	Center Contact Plating	Dielectric Material	Center Gender	Adapter Type	Impedance	Convert From (Adapter End)	Fastening Type	Mounting Type
Rosenberger 39S132-S00L5	Male Pin SMA Plug	SMA to SMC	Gold	155 °C	-55 °C	500	Beryllium Copper	Straight	Between Series	6000 MHz	Beryllium Copper Brass	Gold	Polytetrafluoroethylene (PTFE)	Male to Male	Plug to Plug	50 Ohms	SMC Plug Male Pin	Snap-On Threaded	Free Hanging (In-Line)
Rosenberger 39S132-K00L5	Male Pin SMC Plug	SMA to SMC	Gold	155 °C	-55 °C	500	Beryllium Copper	Straight	Between Series	6000 MHz	Beryllium Copper Brass	Gold	Polytetrafluoroethylene (PTFE)		Plug to Jack	50 Ohms	Female Socket SMA Jack	Snap-On Threaded	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMC Plug, Male Pin 50 Ohms
