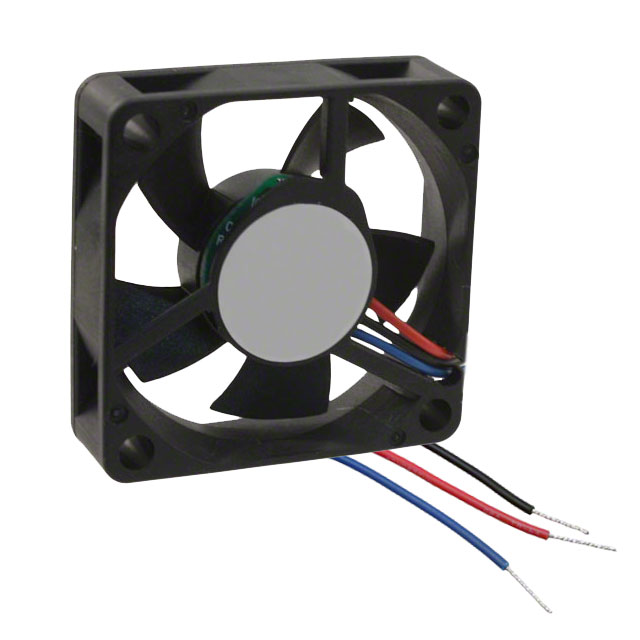

AFB03512HA-AF00

Delta Electronics

DC FAN AXIAL BALL BEARING 12V 9.5V TO 13.8V 5.5CFM 22DB 35 X 35 X 10MM

Search across all available documentation for this part.

Delta Electronics

DC FAN AXIAL BALL BEARING 12V 9.5V TO 13.8V 5.5CFM 22DB 35 X 35 X 10MM

Technical Specifications

Parameters and characteristics for this part

Specification	AFB03512HA-AF00

Air Flow	0.154 m³/min
Air Flow	5.5 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.09 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	30000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	22 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.08 W
RPM	7000 RPM
Size / Dimension [x]	35 mm
Size / Dimension [z]	35 mm
Static Pressure	26.4 Pa
Static Pressure	0.106 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	9.5 VDC
Weight	10.43 g
Weight	0.023 lb
Width [y]	10 mm

Part	Size / Dimension [z]	Size / Dimension [x]	Lifetime @ Temp.	Noise	Width [y]	RPM	Material - Frame	Material - Blade	Features	Fan Type	Weight	Weight	Voltage Range [Min]	Voltage Range [Max]	Voltage - Rated	Approval Agency	Static Pressure	Static Pressure	Air Flow	Air Flow	Termination	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Bearing Type	Power (Watts)	Air Flow
Delta Electronics AFB03512HA-AF00	35 mm	35 mm	30000 Hrs	22 dB(A)	10 mm	7000 RPM	Plastic	Plastic	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	10.43 g	0.023 lb	9.5 VDC	13.8 VDC	12 VDC	CE CSA UL VDE	26.4 Pa	0.106 in H2O	0.154 m³/min	5.5 CFM	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	0.09 A	Ball	1.08 W
Delta Electronics AFB03512MA-A	35 mm	35 mm	30000 Hrs	18 dB(A)	10 mm	5800 RPM	Plastic	Plastic		Tubeaxial	10.43 g	0.023 lb	9.5 VDC	13.8 VDC	12 VDC	CE CSA UL VDE	18.6 Pa	0.075 in H2O		0.126 m³/min	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	50 mA	Ball	600 mW	4.5 CFM
Delta Electronics AFB03512LA-C	35 mm	35 mm	30000 Hrs	13 dB(A)	10 mm	4500 RPM	Plastic	Plastic		Tubeaxial	10.43 g	0.023 lb	4.5 V	13.2 VDC	12 VDC		11.9 Pa	0.048 in H2O		0.095 m³/min	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	30 mA	Ball	0.36 W	3.4 CFM
Delta Electronics AFB03512HA-A	35 mm	35 mm	30000 Hrs	22 dB(A)	10 mm	7000 RPM	Plastic	Plastic		Tubeaxial	10.43 g	0.023 lb	9.5 VDC	13.8 VDC	12 VDC	CE CSA UL VDE	26.4 Pa	0.106 in H2O	0.154 m³/min	5.5 CFM	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	0.09 A	Ball	1.08 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 35mm L x 35mm H Ball 5.5 CFM (0.154m³/min) 3 Wire Leads
