RN152-10-02-1M8
ActiveTE Connectivity Raychem Cable Protection
CMC 1.8MH 10A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RN152-10-02-1M8
ActiveTE Connectivity Raychem Cable Protection
CMC 1.8MH 10A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RN152-10-02-1M8 |
|---|---|
| Approval Agency | ENEC, UR, VDE |
| Current Rating (Max) [Max] | 10 A |
| DC Resistance (DCR) (Max) [Max] | 14 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] [z] | 0.996 in |
| Height (Max) [Max] [z] | 25.3 mm |
| Inductance @ Frequency | 1.8 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Horizontal |
| Package / Case | 4 Lead |
| Size / Dimension [x] | 1.693 in |
| Size / Dimension [x] | 43 mm |
| Size / Dimension [y] | 1.646 in |
| Size / Dimension [y] | 41.8 mm |
| Voltage Rating - AC | 300 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 7.15 | |
| 10 | $ 5.88 | |||
| 25 | $ 5.40 | |||
| 50 | $ 5.08 | |||
| 100 | $ 4.84 | |||
| 300 | $ 4.76 | |||
| 500 | $ 4.64 | |||
Description
General part information
RN152 Series

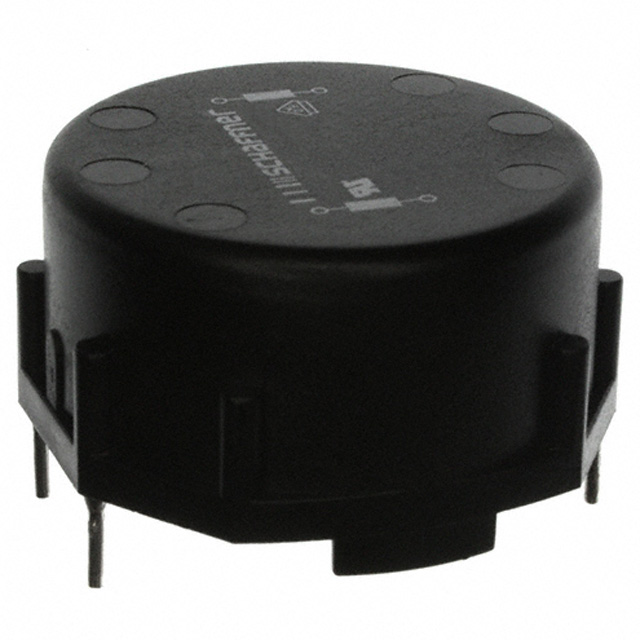

1.8 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 10A DCR 14mOhm (Typ)
