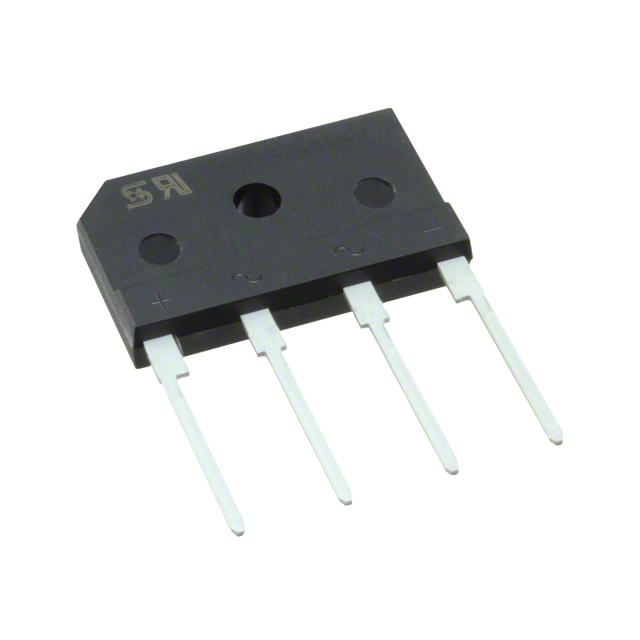

TS4K60

Active

Taiwan Semiconductor Corporation

4A, 600V, STANDARD BRIDGE RECTIFIER

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

4A, 600V, STANDARD BRIDGE RECTIFIER

Technical Specifications

Parameters and characteristics for this part

Specification	TS4K60

Current - Average Rectified (Io)	4 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	GBL, 4-SIP
Supplier Device Package	TS4K
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1 V
Voltage - Peak Reverse (Max) [Max]	600 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Current - Average Rectified (Io)	Package / Case	Voltage - Forward (Vf) (Max) @ If	Diode Type	Voltage - Peak Reverse (Max) [Max]	Mounting Type	Technology	Current - Reverse Leakage @ Vr
Taiwan Semiconductor Corporation TS4K60-A	-55 °C	150 °C	TS4K	4 A	4-SIP TS4K	1 V	Single Phase	600 V	Through Hole	Standard	10 µA
Taiwan Semiconductor Corporation TS4K60	-55 °C	150 °C	TS4K	4 A	4-SIP GBL	1 V	Single Phase	600 V	Through Hole	Standard	10 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 600 V Through Hole TS4K
