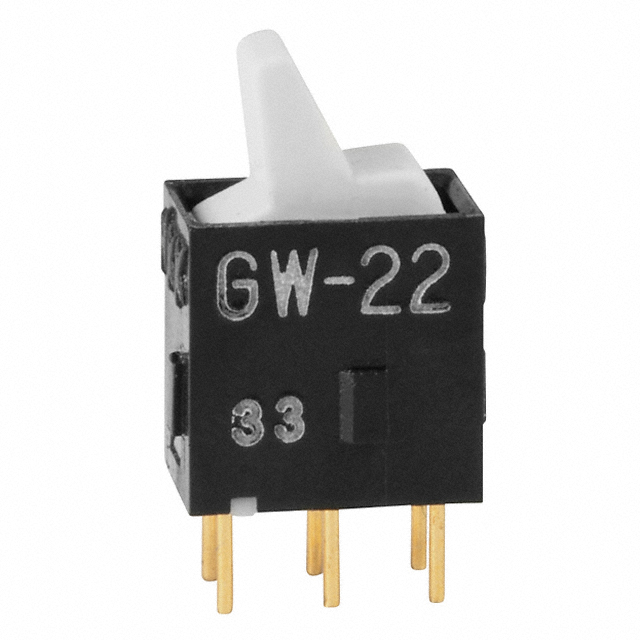

GW22LBP

Active

NKK Switches

SWITCH ROCKER ON NONE ON DPDT PC PINS PADDLE 0.1A 28VAC 28VDC 0.4VA 50000CYCLES

Search across all available documentation for this part.

Active

NKK Switches

SWITCH ROCKER ON NONE ON DPDT PC PINS PADDLE 0.1A 28VAC 28VDC 0.4VA 50000CYCLES

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Approval Agency	Current Rating (Amps)	Features	Electrical Life	Mounting Type	Actuator Marking	Color - Actuator/Cap	Voltage Rating - DC	Switch Function	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Voltage Rating - AC
NKK Switches GW22LBV	PC Pin	CSA UL	0.4 VA	Sealed - Flux Protection	50000 Cycles	Right Angle Through Hole Vertical	No Marking	White	28 V	On-On	DPDT	-30 ░C	85 °C	Paddle	28 V
NKK Switches GW22LBP	PC Pin	CSA UL	0.4 VA	Sealed - Flux Protection	50000 Cycles	Through Hole	No Marking	White	28 V	On-On	DPDT	-30 ░C	85 °C	Paddle	28 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPDT 0.4VA (AC/DC) 28 V Through Hole
