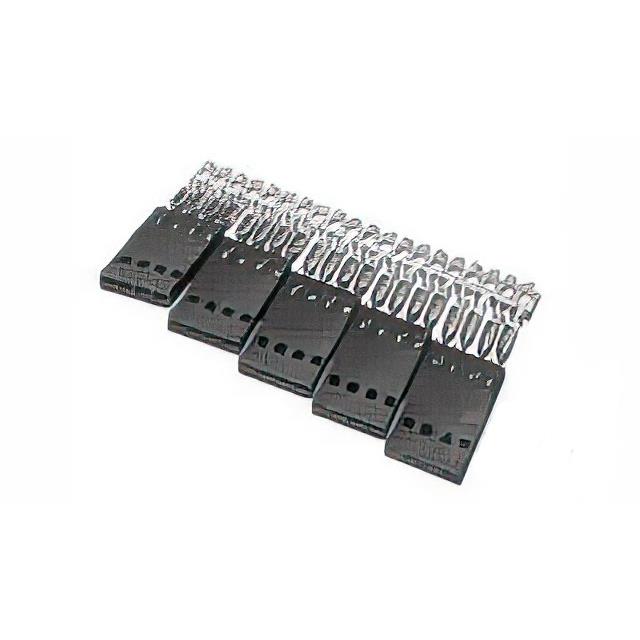

5-103973-9
ActiveTE Connectivity AMP Connectors
CONN RCPT 10P IDC 26-30AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
5-103973-9
ActiveTE Connectivity AMP Connectors
CONN RCPT 10P IDC 26-30AWG GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-103973-9 | 103973 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Type | Female Socket | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 10 | 2 - 10 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Wire Gauge [Max] | 30 AWG | 30 AWG |
| Wire Gauge [Min] | 26 AWG | 26 AWG |
| Wire Type | Discrete | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.24 | |
| 22 | $ 4.74 | |||
| 44 | $ 4.46 | |||
| 66 | $ 4.30 | |||
| 110 | $ 4.11 | |||
| 264 | $ 3.80 | |||
| 506 | $ 3.59 | |||
| 924 | $ 3.76 | |||
| 1012 | $ 3.50 | |||
103973 Series
CONN RCPT 3POS IDC 26-30AWG GOLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Color | Wire Type | Contact Type | Connector Type | Contact Finish | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Number of Rows | Cable Termination | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-103973-2 | 0.76 Ám | 30 Áin | 2.54 mm | 0.1 in | Black | Discrete | Female Socket | Receptacle | Gold | Free Hanging (In-Line) | 26 AWG | 30 AWG | 1 | IDC | |
TE Connectivity AMP Connectors 5-103973-1 | 0.76 Ám | 30 Áin | 2.54 mm | 0.1 in | Black | Discrete | Female Socket | Receptacle | Gold | Free Hanging (In-Line) | 26 AWG | 30 AWG | 1 | IDC | 2 |
TE Connectivity AMP Connectors 5-103973-9 | 0.76 Ám | 30 Áin | 2.54 mm | 0.1 in | Black | Discrete | Female Socket | Receptacle | Gold | Free Hanging (In-Line) | 26 AWG | 30 AWG | 1 | IDC | 10 |
TE Connectivity AMP Connectors 5-103973-3 | 0.76 Ám | 30 Áin | 2.54 mm | 0.1 in | Black | Discrete | Female Socket | Receptacle | Gold | Free Hanging (In-Line) | 26 AWG | 30 AWG | 1 | IDC | 4 |
Description
General part information
103973 Series
10 Position Rectangular Receptacle Connector IDC Gold 26-30 AWG
Documents
Technical documentation and resources
No documents available
