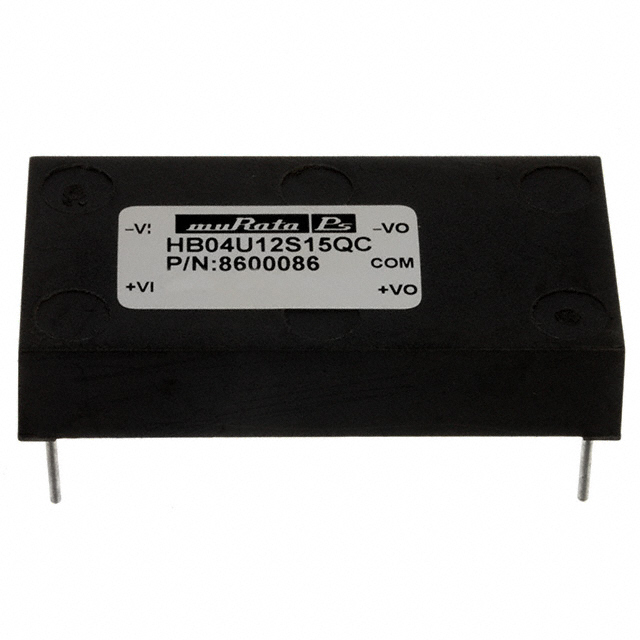

HB04U12S15QC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 15V 4W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HB04U12S15QC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 15V 4W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HB04U12S15QC |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 267 mA |
| Efficiency | 87 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 4 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
HB04U12 Series
DC DC CONVERTER 15V 4W
| Part | Package / Case | Number of Outputs | Voltage - Isolation | Applications | Type | Efficiency | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Mounting Type | Power (Watts) | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. HB04U12S15QC | 5-DIP Module | 1 | 3000 V | ITE (Commercial) | Isolated Module | 87 % | 267 mA | 10.8 V | 25.4 mm | 0.4 " | 2 in | 10.2 mm | 50.8 mm | 25.4 mm | 85 °C | -40 °C | 15 V | Through Hole | 4 W | 13.2 V |
Description
General part information
HB04U12 Series
Isolated Module DC DC Converter 1 Output 15V 267mA 10.8V - 13.2V Input
