TPS7A7001EVM-065
ActiveTexas Instruments

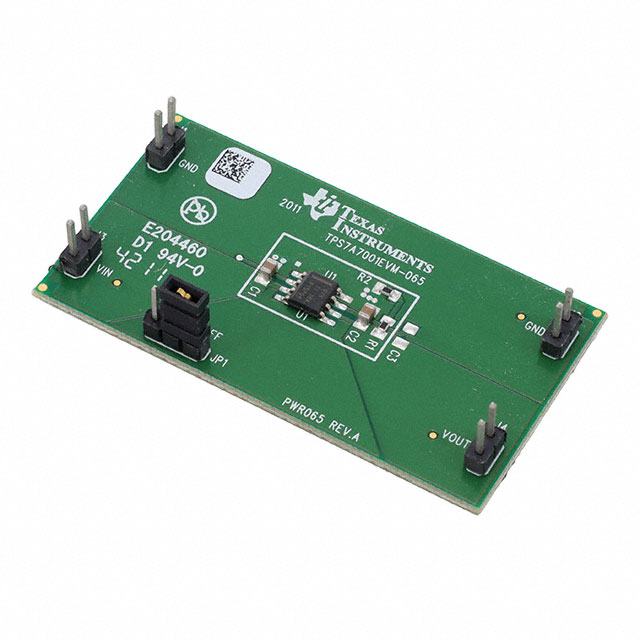

EVAL MODULE FOR TPA7A7001-065
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPS7A7001EVM-065
ActiveTexas Instruments
EVAL MODULE FOR TPA7A7001-065
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS7A7001EVM-065 | TPS7A7001 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Channels per IC | 1 | 1 |
| Control Features | - | Enable |
| Current - Output | 2 A | 2 A |
| Current - Quiescent (Iq) | - | 3 mA |
| Mounting Type | - | Surface Mount |
| Number of Regulators | - | 1 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 105 ░C |
| Output Configuration | - | Positive |
| Output Type | - | Adjustable |
| Package / Case | - | 3.9 mm |
| Package / Case | - | 8-PowerSOIC |
| Package / Case | - | 0.154 in |
| Protection Features | - | Under Voltage Lockout (UVLO), Over Current, Over Temperature |
| Regulator Type | Positive Adjustable | Positive Adjustable |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 8-SO PowerPad |
| Utilized IC / Part | TPS7A7001 | TPS7A7001 |
| Voltage - Input (Max) | - | 6.5 V |
| Voltage - Input [Max] | 6.5 V | 6.5 V |
| Voltage - Input [Min] | 1.425 V | 1.425 V |
| Voltage - Output (Max) | - | 5 V |
| Voltage - Output (Min/Fixed) | - | 0.9 V |
| Voltage - Output [Max] | 5 V | 5 V |
| Voltage - Output [Min] | 0.9 V | 0.9 V |
| Voltage Dropout (Max) | - | 0.38 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS7A7001 Series
EVAL MODULE FOR TPA7A7001-065
| Part | Regulator Type | Supplied Contents | Channels per IC | Utilized IC / Part | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output | Board Type | Voltage - Output [Max] | Voltage - Output [Min] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Control Features | Number of Regulators | Protection Features | Current - Quiescent (Iq) | Output Type | Voltage Dropout (Max) | Voltage - Input (Max) [Max] | Output Configuration | Voltage - Output (Max) [Max] | Voltage - Output (Min/Fixed) [Min] | Package / Case [custom] | Package / Case | Package / Case [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS7A7001EVM-065TPS7A7001 1 - Single Channels per IC Positive Adjustable Linear Voltage Regulator Evaluation Board | Positive Adjustable | Board(s) | 1 | TPS7A7001 | 1.425 V | 6.5 V | 2 A | Fully Populated | 5 V | 0.9 V | |||||||||||||||||
Texas Instruments TPS7A7001DDAThe TPS7A7001 is a high-performance, positive-voltage, low-dropout (LDO) regulator designed for applications requiring very low input voltage and very low dropout voltage at up to 2 A. The device operates with a single input voltage as low as 1.425 V, and with an output voltage programmable to as low as 0.5 V. The output voltage can be set with an external resister divider.
The TPS7A7001 features ultra-low dropout, ideal for applications where VOUTis very close to VIN. Additionally, the TPS7A7001 has an enable pin for further reduced power dissipation while in shutdown mode. The TPS7A7001 provides excellent regulation over variations in line, load, and temperature.
The TPS7A7001 is available in an 8-pin SO PowerPAD™ package.
The TPS7A7001 is a high-performance, positive-voltage, low-dropout (LDO) regulator designed for applications requiring very low input voltage and very low dropout voltage at up to 2 A. The device operates with a single input voltage as low as 1.425 V, and with an output voltage programmable to as low as 0.5 V. The output voltage can be set with an external resister divider.
The TPS7A7001 features ultra-low dropout, ideal for applications where VOUTis very close to VIN. Additionally, the TPS7A7001 has an enable pin for further reduced power dissipation while in shutdown mode. The TPS7A7001 provides excellent regulation over variations in line, load, and temperature.
The TPS7A7001 is available in an 8-pin SO PowerPAD™ package. | 2 A | Surface Mount | -40 °C | 105 ░C | 8-SO PowerPad | Enable | 1 | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | 3 mA | Adjustable | 0.38 V | 6.5 V | Positive | 5 V | 0.9 V | 3.9 mm | 8-PowerSOIC | 0.154 in | |||||||||
Texas Instruments TPS7A7001DDARThe TPS7A7001 is a high-performance, positive-voltage, low-dropout (LDO) regulator designed for applications requiring very low input voltage and very low dropout voltage at up to 2 A. The device operates with a single input voltage as low as 1.425 V, and with an output voltage programmable to as low as 0.5 V. The output voltage can be set with an external resister divider.
The TPS7A7001 features ultra-low dropout, ideal for applications where VOUTis very close to VIN. Additionally, the TPS7A7001 has an enable pin for further reduced power dissipation while in shutdown mode. The TPS7A7001 provides excellent regulation over variations in line, load, and temperature.
The TPS7A7001 is available in an 8-pin SO PowerPAD™ package.
The TPS7A7001 is a high-performance, positive-voltage, low-dropout (LDO) regulator designed for applications requiring very low input voltage and very low dropout voltage at up to 2 A. The device operates with a single input voltage as low as 1.425 V, and with an output voltage programmable to as low as 0.5 V. The output voltage can be set with an external resister divider.
The TPS7A7001 features ultra-low dropout, ideal for applications where VOUTis very close to VIN. Additionally, the TPS7A7001 has an enable pin for further reduced power dissipation while in shutdown mode. The TPS7A7001 provides excellent regulation over variations in line, load, and temperature.
The TPS7A7001 is available in an 8-pin SO PowerPAD™ package. | 2 A | Surface Mount | -40 °C | 105 ░C | 8-SO PowerPad | Enable | 1 | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | 3 mA | Adjustable | 0.38 V | 6.5 V | Positive | 5 V | 0.9 V | 3.9 mm | 8-PowerSOIC | 0.154 in |
Description
General part information
TPS7A7001 Series
TPS7A7001 1 - Single Channels per IC Positive Adjustable Linear Voltage Regulator Evaluation Board
