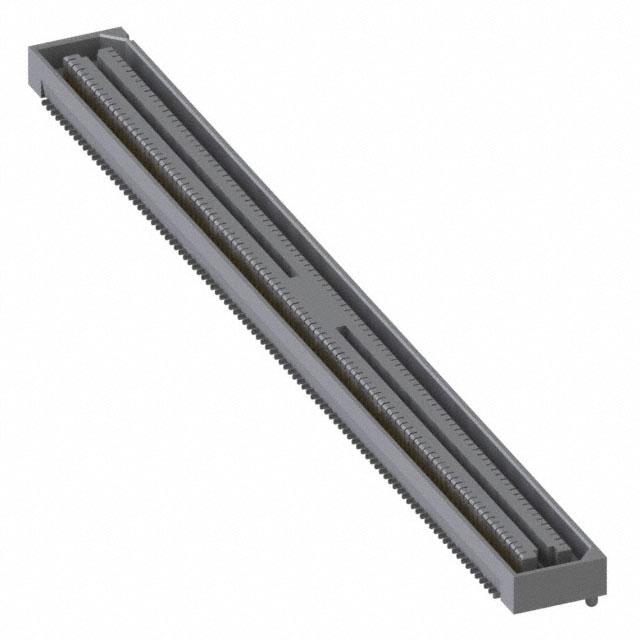

BSE-100-01-F-D-A

Active

Samtec Inc.

CONN RCPT 200POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 200POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BSE-100-01-F-D-A

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	Flash
Features	Board Guide
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	8 mm, 5 mm
Mounting Type	Surface Mount
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows	Mated Stacking Heights	Features	Height Above Board	Height Above Board	Mounting Type	Pitch [x]	Pitch [x]	Contact Finish Thickness
Samtec Inc. BSE-100-01-L-D-FL	Center Strip Contacts Receptacle	10 Áin	0.25 Ám	Gold	2	5 mm 8 mm	Friction Lock	3.25 mm	0.128 in	Surface Mount	0.8 mm	0.031 in
Samtec Inc. BSE-100-01-F-D-A-FL	Center Strip Contacts Receptacle			Gold	2	5 mm 8 mm	Board Guide Friction Lock	3.25 mm	0.128 in	Surface Mount	0.8 mm	0.031 in	Flash
Samtec Inc. BSE-100-01-F-D-LC	Center Strip Contacts Receptacle			Gold	2	5 mm 8 mm		3.25 mm	0.128 in	Surface Mount	0.8 mm	0.031 in	Flash
Samtec Inc. BSE-100-01-F-D-A	Center Strip Contacts Receptacle			Gold	2	5 mm 8 mm	Board Guide	3.25 mm	0.128 in	Surface Mount	0.8 mm	0.031 in	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	6	$ 5.96

General part information

200 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Technical documentation and resources

No documents available
