B3MH
ActiveSwitchcraft Inc.

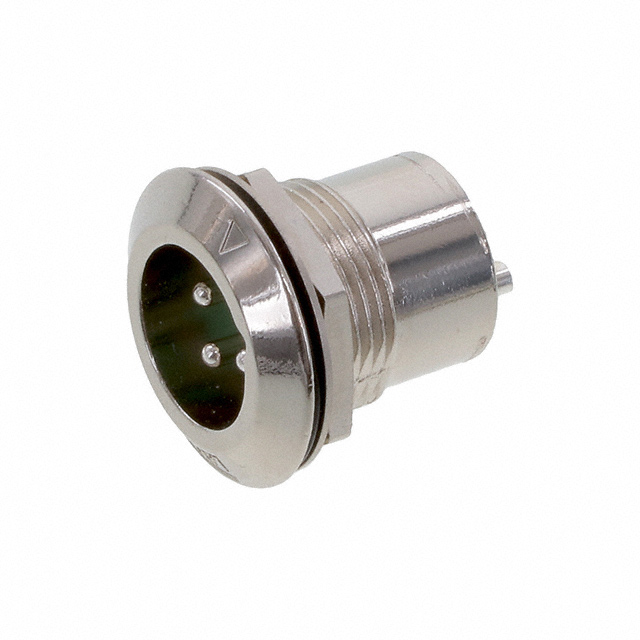

CONN RCPT MALE XLR 3P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B3MH
ActiveSwitchcraft Inc.
CONN RCPT MALE XLR 3P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | B3MH | B3M Series |
|---|---|---|
| Applications | Audio, Instrumentation | Audio, Instrumentation |
| Color | Silver | Black, Silver |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Silver | Silver, Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | - | 15 A |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Ground | Ground |
| Ingress Protection | IP66 | IP66 |
| Insert Material | Polyester | Polyester |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Black, Nickel |
| Shell Material | Zinc | Zinc |
| Shell Size - Insert | XLR | XLR |
| Voltage Rating | - | 125 VAC |
B3M Series
CONN XLR CONNECTOR M 3 POS ST PANEL MOUNT 3 TERMINAL 1 PORT
| Part | Contact Finish - Mating | Shell Finish | Fastening Type | Primary Material | Color | Features | Insert Material | Connector Type | Contact Material | Shell Size - Insert | Applications | Current Rating (Amps) | Orientation | Mounting Feature | Shell Material | Voltage Rating | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. B3MB | Silver | Black | Latch Lock | Metal | Black | Ground | Polyester | Male Pins, Receptacle | Brass | XLR | Audio, Instrumentation | 15 A | Keyed | Bulkhead - Rear Side Nut | Zinc | 125 VAC | |||
Switchcraft Inc. B3MH | Silver | Nickel | Latch Lock | Metal | Silver | Ground | Polyester | Male Pins, Receptacle | Brass | XLR | Audio, Instrumentation | Keyed | Bulkhead - Rear Side Nut | Zinc | IP66 | 65 °C | -40 °C | ||
Switchcraft Inc. B3MBAUH | Gold | Black | Latch Lock | Metal | Black | Ground | Polyester | Male Pins, Receptacle | Brass | XLR | Audio, Instrumentation | Keyed | Bulkhead - Rear Side Nut | Zinc | IP66 | 65 °C | -40 °C | ||
Switchcraft Inc. B3MAUH | Gold | Nickel | Latch Lock | Metal | Silver | Ground | Polyester | Male Pins, Receptacle | Brass | XLR | Audio, Instrumentation | Keyed | Bulkhead - Rear Side Nut | Zinc | IP66 | 65 °C | -40 °C | ||
Switchcraft Inc. B3MBH | Silver | Black | Latch Lock | Metal | Black | Ground | Polyester | Male Pins, Receptacle | Brass | XLR | Audio, Instrumentation | Keyed | Bulkhead - Rear Side Nut | Zinc | IP66 | 65 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.06 | |
| 10 | $ 15.45 | |||
| 25 | $ 13.98 | |||
| 50 | $ 12.99 | |||
| 100 | $ 12.09 | |||
| 300 | $ 10.83 | |||
| 500 | $ 10.31 | |||
| 1000 | $ 9.84 | |||
Description
General part information
B3M Series
3 Position Circular Connector Receptacle, Male Pins Solder Cup
Documents
Technical documentation and resources
