B3MBAUH

Active

Switchcraft Inc.

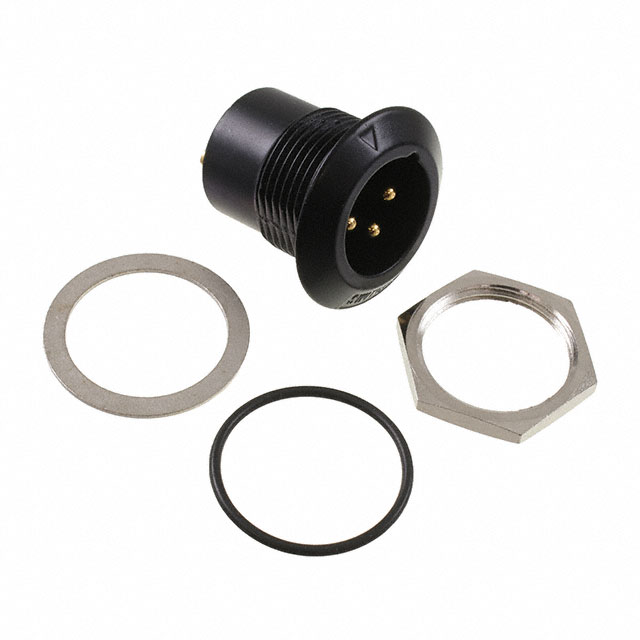

CONN RCPT MALE XLR 3P SOLDER CUP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE XLR 3P SOLDER CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN XLR CONNECTOR M 3 POS ST PANEL MOUNT 3 TERMINAL 1 PORT

Part	Contact Finish - Mating	Shell Finish	Fastening Type	Primary Material	Color	Features	Insert Material	Connector Type	Contact Material	Shell Size - Insert	Applications	Current Rating (Amps)	Orientation	Mounting Feature	Shell Material	Voltage Rating	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]
Switchcraft Inc. B3MB	Silver	Black	Latch Lock	Metal	Black	Ground	Polyester	Male Pins, Receptacle	Brass	XLR	Audio, Instrumentation	15 A	Keyed	Bulkhead - Rear Side Nut	Zinc	125 VAC
Switchcraft Inc. B3MH	Silver	Nickel	Latch Lock	Metal	Silver	Ground	Polyester	Male Pins, Receptacle	Brass	XLR	Audio, Instrumentation		Keyed	Bulkhead - Rear Side Nut	Zinc		IP66	65 °C	-40 °C
Switchcraft Inc. B3MBAUH	Gold	Black	Latch Lock	Metal	Black	Ground	Polyester	Male Pins, Receptacle	Brass	XLR	Audio, Instrumentation		Keyed	Bulkhead - Rear Side Nut	Zinc		IP66	65 °C	-40 °C
Switchcraft Inc. B3MAUH	Gold	Nickel	Latch Lock	Metal	Silver	Ground	Polyester	Male Pins, Receptacle	Brass	XLR	Audio, Instrumentation		Keyed	Bulkhead - Rear Side Nut	Zinc		IP66	65 °C	-40 °C
Switchcraft Inc. B3MBH	Silver	Black	Latch Lock	Metal	Black	Ground	Polyester	Male Pins, Receptacle	Brass	XLR	Audio, Instrumentation		Keyed	Bulkhead - Rear Side Nut	Zinc		IP66	65 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
