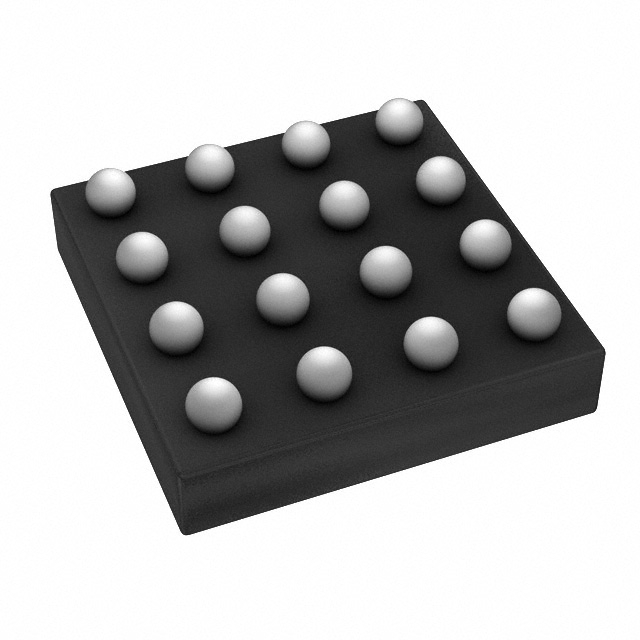

PAM8404ZER

Active

Diodes Inc

AUDIO AMP SPEAKER 2-CH STEREO 2.2W CLASS-D 16-PIN WCSP T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques

PAM8404ZER

Active

Diodes Inc

AUDIO AMP SPEAKER 2-CH STEREO 2.2W CLASS-D 16-PIN WCSP T/R

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PAM8404ZER

Features	Short-Circuit, Thermal Protection, Depop
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	2-Channel (Stereo)
Supplier Device Package	16-WCSP (1.95x1.95)
Type	Class D
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.5 V

PAM8404 Series

3W Stereo Class D with Separate Shutdown Control

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Output Type	Features	Mounting Type	Supplier Device Package
Diodes Inc PAM8404ZER	2.5 V	5.5 V	85 °C	-40 °C	Class D	2-Channel (Stereo)	Depop Short-Circuit Thermal Protection	Surface Mount	16-WCSP (1.95x1.95)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.42
		6000	$ 0.39
		9000	$ 0.38
		15000	$ 0.36
		21000	$ 0.35

Description

General part information

PAM8404 Series

The PAM8404 is a 3W high efficiency filterless Class-D audio amplifier in 4mmX4mm and 2mmX2mm wafer chip scale (WCSP) packages that requires few external components. Features like 89% efficiency, -63dB PSRR, improved RF-rectification immunity, and very small PCB area make the PAM8404 Class-D amplifier ideal for cellular handset and PDA applications. In cellular handsets, the earpiece, speaker phone, and melody ringer can each be driven by the PAM8404. The PAM8404 allows independent gain by summing signals from seperate sources, and has as low as 43μV noise floor. PAM8404 is available in QFN 4mmx4mm and WCSP 2mmx2mm packages.
