341-023-500-102

Active

EDAC Inc.

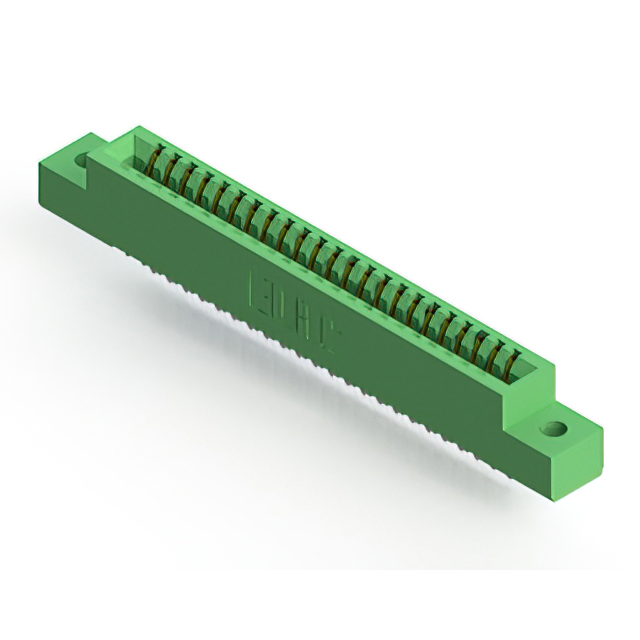

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 23 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

341-023-500-102

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 23 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-023-500-102

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	23
Number of Positions/Bay/Row [custom]	23
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder Eyelet(s)
Termination Rows	1

341-023 Series

Part	Pitch [x]	Pitch [x]	Card Type	Material - Insulation	Number of Positions/Bay/Row [custom]	Termination	Contact Material	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Number of Positions	Color	Number of Rows	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Mounting Type
EDAC Inc. 341-023-522-102	2.54 mm	0.1 in	Non Specified - Single Edge	Polyester Thermoplastic	23	Solder	Copper Alloy	Female	-40 °C	105 ░C	1	23	Green	1	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Through Hole
EDAC Inc. 341-023-521-103	2.54 mm	0.1 in	Non Specified - Single Edge	Polyester Thermoplastic	23	Solder	Copper Alloy	Female	-40 °C	105 ░C	1	23	Green	1	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	Gold	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Through Hole
EDAC Inc. 341-023-500-102	2.54 mm	0.1 in	Non Specified - Single Edge	Diallyl Phthalate (DAP)	23	Solder Eyelet(s)	Copper Alloy	Female	-40 °C	105 ░C	1	23	Green	1	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Through Hole
EDAC Inc. 341-023-520-103	2.54 mm	0.1 in	Non Specified - Single Edge	Polyester Thermoplastic	23	Solder	Copper Alloy	Female	-40 °C	105 ░C	1	23	Green	1	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	Gold	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Through Hole
EDAC Inc. 341-023-524-102	2.54 mm	0.1 in	Non Specified - Single Edge	Polyester Thermoplastic	23	Solder	Copper Alloy	Female	-40 °C	105 ░C	1	23	Green	1	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Through Hole
EDAC Inc. 341-023-500-104	2.54 mm	0.1 in	Non Specified - Single Edge	Diallyl Phthalate (DAP)	23	Solder Eyelet(s)	Copper Alloy	Female	-40 °C	105 ░C	1	23	Green	1	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	Gold	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	Through Hole
EDAC Inc. 341-023-522-101	2.54 mm	0.1 in	Non Specified - Single Edge	Polyester Thermoplastic	23	Solder	Copper Alloy	Female	-40 °C	105 ░C	1	23	Green	1	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	Gold				Through Hole
EDAC Inc. 341-023-500-103	2.54 mm	0.1 in	Non Specified - Single Edge	Diallyl Phthalate (DAP)	23	Solder Eyelet(s)	Copper Alloy	Female	-40 °C	105 ░C	1	23	Green	1	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	Gold	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Through Hole
EDAC Inc. 341-023-522-104	2.54 mm	0.1 in	Non Specified - Single Edge	Polyester Thermoplastic	23	Solder	Copper Alloy	Female	-40 °C	105 ░C	1	23	Green	1	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	Gold	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	Through Hole
EDAC Inc. 341-023-522-108	2.54 mm	0.1 in	Non Specified - Single Edge	Polyester Thermoplastic	23	Solder	Copper Alloy	Female	-40 °C	105 ░C	1	23	Green	1	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	Gold			4-40 Flush Mount Threaded Insert Top Opening	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 17.35
Newark	Each	1	$ 17.43
		100	$ 14.16
		250	$ 12.39
		500	$ 11.82
		1000	$ 10.20

Description

General part information

341-023 Series

23 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
