TDN 5-0922WI

Active

Traco Power

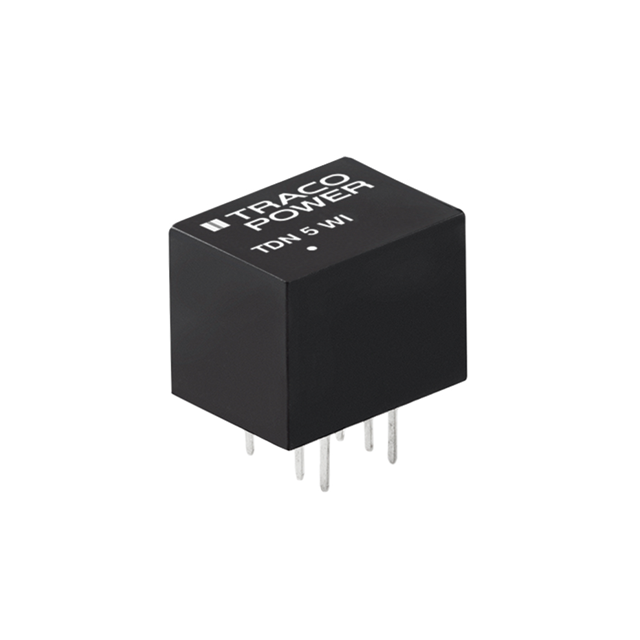

MODULE DC-DC 5VIN 2-OUT -12V/12V -0.21A/0.21A 5W 6-PIN DIP MODULE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TDN 5-0922WI

Active

Traco Power

MODULE DC-DC 5VIN 2-OUT -12V/12V -0.21A/0.21A 5W 6-PIN DIP MODULE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TDN 5-0922WI	TDN 5 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	-	UL
Current - Output (Max)	210 mA	210 - 500 mA
Current - Output (Max)	210 mA	210 mA
Current - Output (Max)	-	500 mA
Current - Output (Max)	-	1 - 555 mA
Efficiency	83 %	76 - 83 %
Features	Remote On/Off, SCP	Remote On/Off, SCP
Mounting Type	Through Hole	Through Hole, Surface Mount
Number of Outputs	2	1 - 2
Operating Temperature [Max]	75 ¯C	75 ¯C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-DIP Module, 6 Leads	7-DIP Module, 6 Leads, 7-SMD Module, 6 Leads
Power (Watts)	5 W	3.3 - 5 W
Size / Dimension [x]	13.2 mm	13.2 mm
Size / Dimension [x]	0.52 in	0.52 in
Size / Dimension [y]	9.1 mm	9.1 mm
Size / Dimension [y]	0.36 "	0.36 "
Size / Dimension [z]	10.2 mm	10.2 mm
Size / Dimension [z]	0.4 "	0.4 "
Standard Number	-	60950-1, 62368-1
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	13.2 V	13.2 - 75 V
Voltage - Input (Min) [Min]	4.5 V	4.5 - 18 V
Voltage - Isolation	1.6 kV	1.6 kV
Voltage - Output 1	12 V	3.3 - 15 V
Voltage - Output 2	-12 V	-12 - -5 V

TDN 5 Series

MODULE DC-DC 5VIN 2-OUT -12V/12V -0.21A/0.21A 5W 6-PIN DIP MODULE

Part	Package / Case	Voltage - Output 1	Features	Voltage - Isolation	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage - Output 2	Voltage - Input (Max) [Max]	Efficiency	Type	Number of Outputs	Power (Watts)	Current - Output (Max)	Current - Output (Max)	Mounting Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max)	Current - Output (Max) [Max]	Approval Agency	Standard Number
Traco Power TDN 5-0922WI	7-DIP Module, 6 Leads	12 V	Remote On/Off, SCP	1.6 kV	4.5 V	-40 °C	75 ¯C	ITE (Commercial)	-12 V	13.2 V	83 %	Isolated Module	2	5 W	210 mA	210 mA	Through Hole	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "
Traco Power TDN 5-0921WI	7-DIP Module, 6 Leads	5 V	Remote On/Off, SCP	1.6 kV	4.5 V	-40 °C	75 ¯C	ITE (Commercial)	-5 V	13.2 V	80 %	Isolated Module	2	5 W	500 mA		Through Hole	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	500 mA
Traco Power TDN 5-2419WI	7-DIP Module, 6 Leads	9 V	Remote On/Off, SCP	1.6 kV	9 V	-40 °C	75 ¯C	ITE (Commercial)		36 V	81 %	Isolated Module	1	5 W			Through Hole	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "		555 mA
Traco Power TDN 5-4822WISM	7-SMD Module, 6 Leads	12 V	Remote On/Off, SCP	1.6 kV	18 V	-40 °C	75 ¯C	ITE (Commercial)	-12 V	75 V	83 %	Isolated Module	2	5 W	210 mA	210 mA	Surface Mount	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "			UL	60950-1, 62368-1
Traco Power TDN 5-2422WI	7-DIP Module, 6 Leads	12 V	Remote On/Off, SCP	1.6 kV	9 V	-40 °C	75 ¯C	ITE (Commercial)	-12 V	36 V	83 %	Isolated Module	2	5 W	210 mA	210 mA	Through Hole	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "
Traco Power TDN 5-2410WISM	7-SMD Module, 6 Leads	3.3 V	Remote On/Off, SCP	1.6 kV	9 V	-40 °C	75 ¯C	ITE (Commercial)		36 V	76 %	Isolated Module	1	3.3 W			Surface Mount	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "		1 A	UL	60950-1, 62368-1
Traco Power TDN 5-4822WI	7-DIP Module, 6 Leads	12 V	Remote On/Off, SCP	1.6 kV	18 V	-40 °C	75 ¯C	ITE (Commercial)	-12 V	75 V	83 %	Isolated Module	2	5 W	210 mA	210 mA	Through Hole	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "
Traco Power TDN 5-4811WISM	7-SMD Module, 6 Leads	5 V	Remote On/Off, SCP	1.6 kV	18 V	-40 °C	75 ¯C	ITE (Commercial)		75 V	81 %	Isolated Module	1	5 W			Surface Mount	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "		1 A	UL	60950-1, 62368-1
Traco Power TDN 5-2412WI	7-DIP Module, 6 Leads	12 V	Remote On/Off, SCP	1.6 kV	9 V	-40 °C	75 ¯C	ITE (Commercial)		36 V	83 %	Isolated Module	1	5 W			Through Hole	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "		420 mA
Traco Power TDN 5-4813WI	7-DIP Module, 6 Leads	15 V	Remote On/Off, SCP	1.6 kV	18 V	-40 °C	75 ¯C	ITE (Commercial)		75 V	83 %	Isolated Module	1	5 W			Through Hole	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "		333 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 28.95
		10	$ 26.61
		25	$ 25.73
		50	$ 25.09
		100	$ 24.46
		250	$ 23.65
		500	$ 20.91

Description

General part information

TDN 5 Series

Isolated Module DC DC Converter 2 Output 12V -12V 210mA, 210mA 4.5V - 13.2V Input
