1241.6834.1112000

Active

SCHURTER Inc.

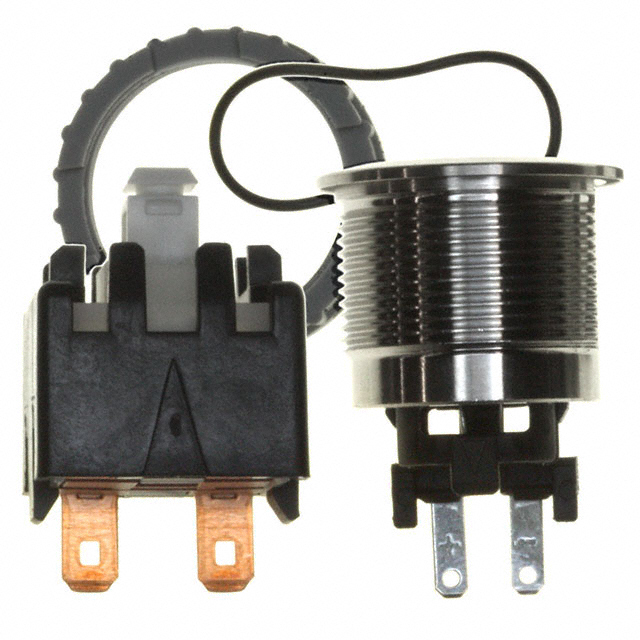

SWITCH PUSHBUTTON SPST 12A 250V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPST 12A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1241.6834.1112000	1241.6834 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button
Circuit	SPST	DPST, SPST
Color - Actuator/Cap	Silver	Silver
Current Rating (Amps)	12 A	12 A
Electrical Life	50000 Cycles	50000 Cycles
Illumination Type, Color	LED, Green	LED, Green, Blue
Illumination Voltage (Nominal)	24 V	24 V
Ingress Protection	IP64 - Dust Tight, Water Resistant	IP64 - Dust Tight, Water Resistant
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Panel Cutout Dimensions [diameter]	22.1 mm	22.1 mm
Switch Function	Off-On	Off-On
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Type	Anti-Vandal, Illuminated	Anti-Vandal, Illuminated
Voltage Rating - AC	250 V	250 V
Voltage Rating - DC	30 V	30 V

SWITCH PUSHBUTTON DPST 12A 250V

Part	Ingress Protection	Color - Actuator/Cap	Voltage Rating - DC	Voltage Rating - AC	Mechanical Life	Actuator Type	Switch Function	Electrical Life	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Current Rating (Amps)	Actuator Marking	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]	Type	Mounting Type	Illumination Type, Color
SCHURTER Inc. 1241.6834.1122000	IP64 - Dust Tight, Water Resistant	Silver	30 V	250 V	100000 Cycles	Button, Round	Off-On	50000 Cycles	Quick Connect - 0.187" (4.7mm)	85 °C	-20 C	DPST	12 A	No Marking	24 V	22.1 mm	Anti-Vandal, Illuminated	Panel Mount, Front	Green, LED
SCHURTER Inc. 1241.6834.1112000	IP64 - Dust Tight, Water Resistant	Silver	30 V	250 V	100000 Cycles	Button, Round	Off-On	50000 Cycles	Quick Connect - 0.187" (4.7mm)	85 °C	-20 C	SPST	12 A	No Marking	24 V	22.1 mm	Anti-Vandal, Illuminated	Panel Mount, Front	Green, LED
SCHURTER Inc. 1241.6834.1124000	IP64 - Dust Tight, Water Resistant	Silver	30 V	250 V	100000 Cycles	Button, Round	Off-On	50000 Cycles	Quick Connect - 0.187" (4.7mm)	85 °C	-20 C	DPST	12 A	No Marking	24 V	22.1 mm	Anti-Vandal, Illuminated	Panel Mount, Front	Blue, LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST Anti-Vandal, Illuminated Panel Mount, Front
