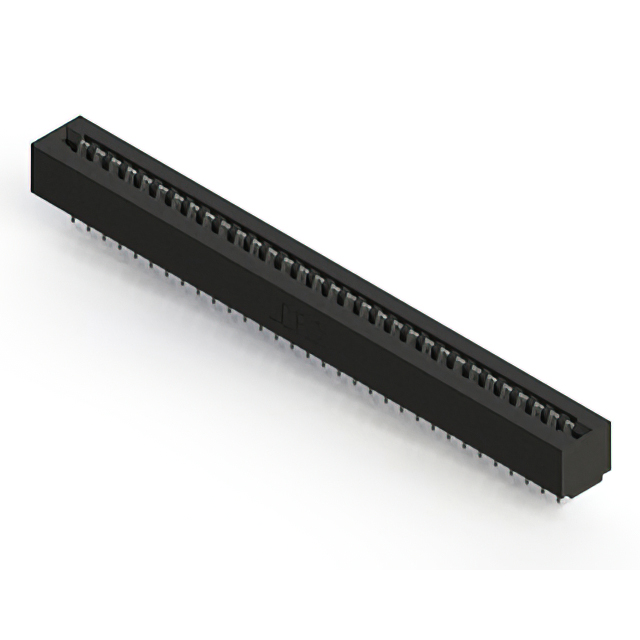

857-064-456-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 64POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-064-456-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 64POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-064-456-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Extender
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	64
Number of Positions/Bay/Row [custom]	32
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

857-064 Series

...

Part	Read Out	Number of Positions	Termination	Contact Finish	Contact Type	Number of Rows	Features	Contact Material	Gender	Termination Rows	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Card Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]
EDAC Inc. 857-064-556-201	Dual	64	Solder	Gold	Semi Bellows	2	Card Extender	Copper Alloy	Female	2	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	0.156 in	3.96 mm	10 Áin	0.25 Ám	32	Non Specified - Dual Edge
EDAC Inc. 857-064-422-203	Dual	64	Solder	Tin	Semi Bellows	2		Copper Alloy	Female	2	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.156 in	3.96 mm			32	Non Specified - Dual Edge	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 857-064-458-201	Single	64	Solder	Tin	Semi Bellows	2		Copper Alloy	Female	2	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	0.156 in	3.96 mm			32	Non Specified - Dual Edge
EDAC Inc. 857-064-400-202	Dual	64	Solder Eyelet(s)	Tin	Semi Bellows	2		Copper Alloy	Female	2	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.156 in	3.96 mm			32	Non Specified - Dual Edge	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm
EDAC Inc. 857-064-558-203	Single	64	Solder	Gold	Semi Bellows	2		Copper Alloy	Female	2	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	0.156 in	3.96 mm	10 Áin	0.25 Ám	32	Non Specified - Dual Edge	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 857-064-555-207	Dual	64	Solder	Gold	Semi Bellows	2	Card Extender	Copper Alloy	Female	2	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	0.156 in	3.96 mm	10 Áin	0.25 Ám	32	Non Specified - Dual Edge		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 857-064-540-204	Dual	64	Wire Wrap	Gold	Semi Bellows	2		Copper Alloy	Female	2	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.156 in	3.96 mm	10 Áin	0.25 Ám	32	Non Specified - Dual Edge	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm
EDAC Inc. 857-064-456-201	Dual	64	Solder	Tin	Semi Bellows	2	Card Extender	Copper Alloy	Female	2	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	0.156 in	3.96 mm			32	Non Specified - Dual Edge
EDAC Inc. 857-064-422-208	Dual	64	Solder	Tin	Semi Bellows	2		Copper Alloy	Female	2	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.156 in	3.96 mm			32	Non Specified - Dual Edge		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 857-064-440-203	Dual	64	Wire Wrap	Tin	Semi Bellows	2		Copper Alloy	Female	2	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.156 in	3.96 mm			32	Non Specified - Dual Edge	0.116 in	Floating Bobbin Flush Mount	2.95 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 95.78
Newark	Each	1	$ 138.00
		100	$ 83.59
		250	$ 74.45
		500	$ 64.36
		1000	$ 49.63

Description

General part information

857-064 Series

64 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
