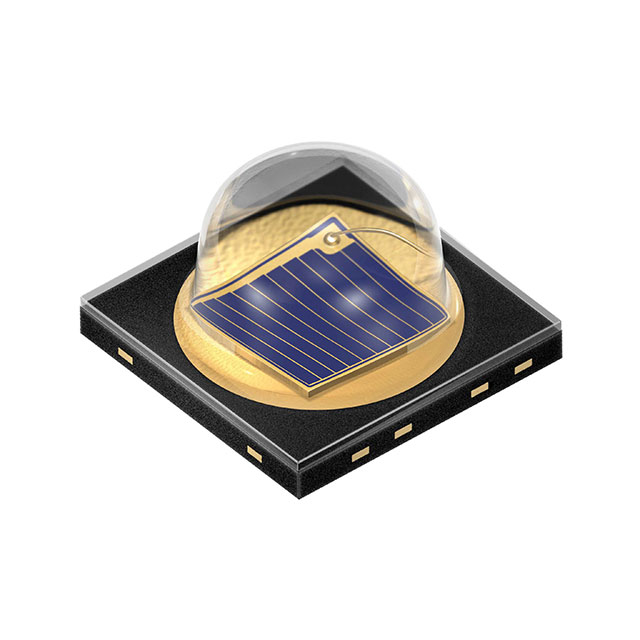

SFH 4715A

Active

ams-OSRAM USA INC.

EMITTER IR 860NM 1.5A SMD

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

EMITTER IR 860NM 1.5A SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SFH 4715A	SFH4715 Series

Current - DC Forward (If) (Max)	-	1 A
Current - DC Forward (If) (Max) [Max]	1.5 A	1.5 - 5 A
Mounting Type	Surface Mount	Surface Mount
Operating Temperature	-	125 °C
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Top View	Top View
Package / Case	3-SMD, No Lead	3-SMD, No Lead
Radiant Intensity (Ie) Min @ If	-	440 mW/sr
Radiant Intensity (Ie) Min @ If [Min]	415 mW/sr	415 - 780 mW/sr
Type	Infrared (IR)	Infrared (IR)
Viewing Angle	-	45 °
Viewing Angle [custom]	90 °	90 °
Voltage - Forward (Vf) (Typ)	1.65 V	1.65 - 3.35 V
Wavelength	860 nm	850 - 860 nm

OSLON BLACK

Part	Orientation	Voltage - Forward (Vf) (Typ)	Type	Viewing Angle [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Wavelength	Radiant Intensity (Ie) Min @ If [Min]	Package / Case	Current - DC Forward (If) (Max) [Max]	Radiant Intensity (Ie) Min @ If	Current - DC Forward (If) (Max)	Viewing Angle	Operating Temperature
ams-OSRAM USA INC. SFH 4715AS-EA	Top View	3.35 V	Infrared (IR)	90 °	-40 °C	125 °C	Surface Mount	860 nm	780 mW/sr	3-SMD, No Lead	1.5 A
ams-OSRAM USA INC. SFH 4715S	Top View	2.9 V	Infrared (IR)	90 °	-40 °C	125 °C	Surface Mount	860 nm		3-SMD, No Lead		440 mW/sr	1 A
ams-OSRAM USA INC. SFH 4715A	Top View	1.65 V	Infrared (IR)	90 °	-40 °C	125 °C	Surface Mount	860 nm	415 mW/sr	3-SMD, No Lead	1.5 A
ams-OSRAM USA INC. SFH 4715AS A01	Top View		Infrared (IR)				Surface Mount	850 nm		3-SMD, No Lead	5 A			45 °	125 °C
ams-OSRAM USA INC. SFH 4715AS	Top View	3.2 V	Infrared (IR)	90 °	-40 °C	125 °C	Surface Mount	860 nm	780 mW/sr	3-SMD, No Lead	1.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 860nm 1.65V 1.5A 415mW/sr @ 1A 90° 3-SMD, No Lead
