3405.0171.24

Active

SCHURTER Inc.

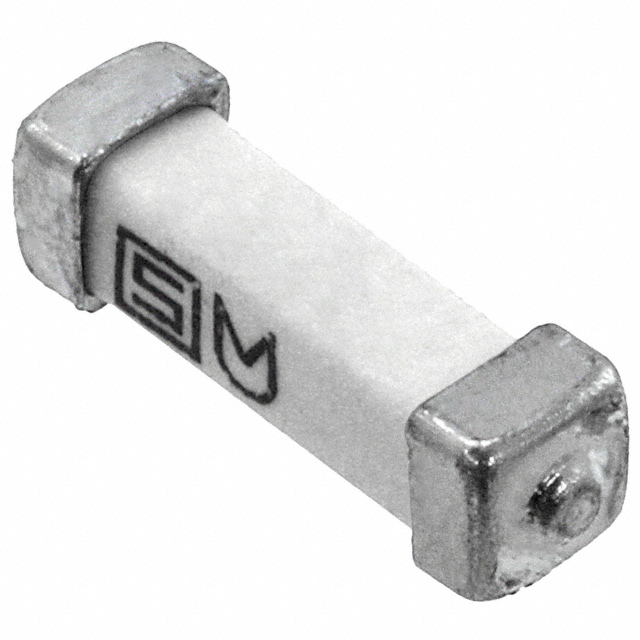

FUSE BRD MNT 3.15A 250VAC 125VDC

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE BRD MNT 3.15A 250VAC 125VDC

Technical Specifications

Parameters and characteristics for this part

Specification	3405.0171.24

Approval Agency	cURus, VDE
Breaking Capacity @ Rated Voltage	100 A
Current Rating (Amps)	3.15 A
Fuse Type	Board Mount
Melting I²t	5.17
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	2-SMD, Square End Block
Response Time	Fast Blow
Size / Dimension [x]	10.1 mm
Size / Dimension [x]	0.398 in
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Size / Dimension [z]	0.118 "
Size / Dimension [z]	3 mm
Voltage Rating - AC	250 V
Voltage Rating - DC	125 VDC

FUSE BRD MNT 3.15A 250VAC 125VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Fuse Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Breaking Capacity @ Rated Voltage	Approval Agency	Voltage Rating - AC	Voltage Rating - DC	Mounting Type	Melting I²t	Current Rating (Amps)	Package / Case	Response Time
SCHURTER Inc. 3405.0171.24	-55 °C	125 °C	Board Mount	3 mm	10.1 mm	0.398 in	0.118 in	0.118 "	3 mm	100 A	cURus, VDE	250 V	125 VDC	Surface Mount	5.17	3.15 A	2-SMD, Square End Block	Fast Blow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.15 A 250 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
