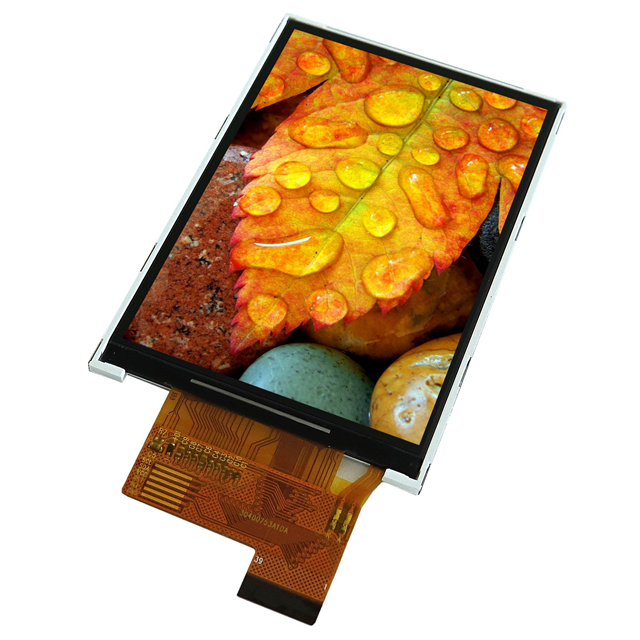

EA TFT035-34AINN

Active

Display Visions

3,5" TFT DISPLAY 320X480X3 DOTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EA TFT035-34AINN

Active

Display Visions

3,5" TFT DISPLAY 320X480X3 DOTS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EA TFT035-34AINN	EATFT035 Series

Backlight	LED - White	LED - White
Controller Type	HX8357D	HX8357D
Display Mode	Transmissive	Transmissive
Display Type	TFT - Color, IPS (In-Plane Switching)	TFT - Color, IPS (In-Plane Switching)
Dot Pitch [x]	0.15 mm	0.15 mm
Dot Pitch [y]	0.15 mm	0.15 mm
Dot Pixels [x]	320 pixels	320 pixels
Dot Pixels [y]	480	480
Graphics Color	Green, Red, Blue	Green, Red, Blue
Interface	8/16-Bit (RGB), Parallel, SPI, 18-Bit (RGB), I2C	8/16-Bit (RGB), Parallel, SPI, 18-Bit (RGB), I2C
Touchscreen	-	Capacitive
Viewing Area [x]	48.96 mm	48.96 mm
Viewing Area [y]	73.44 mm	73.44 mm

EATFT035 Series

3.5" TFT DISPLAY INCL. TOUCH PAN

Part	Graphics Color	Backlight	Dot Pixels [x]	Dot Pixels [y]	Dot Pitch [x]	Dot Pitch [y]	Display Mode	Touchscreen	Display Type	Interface	Viewing Area [y]	Viewing Area [x]	Controller Type
Display Visions EA TFT035-34AITC	Blue, Green, Red	LED - White	320 pixels	480	0.15 mm	0.15 mm	Transmissive	Capacitive	TFT - Color, IPS (In-Plane Switching)	18-Bit (RGB), 8/16-Bit (RGB), I2C, Parallel, SPI	73.44 mm	48.96 mm	HX8357D
Display Visions EA TFT035-34AINN	Blue, Green, Red	LED - White	320 pixels	480	0.15 mm	0.15 mm	Transmissive		TFT - Color, IPS (In-Plane Switching)	18-Bit (RGB), 8/16-Bit (RGB), I2C, Parallel, SPI	73.44 mm	48.96 mm	HX8357D

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.80
		10	$ 31.97
		100	$ 27.92

Description

General part information

EATFT035 Series

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) I2C, Parallel, 8/16-Bit (RGB), 18-Bit (RGB), SPI 3.5" (88.90mm) 320 x 480
