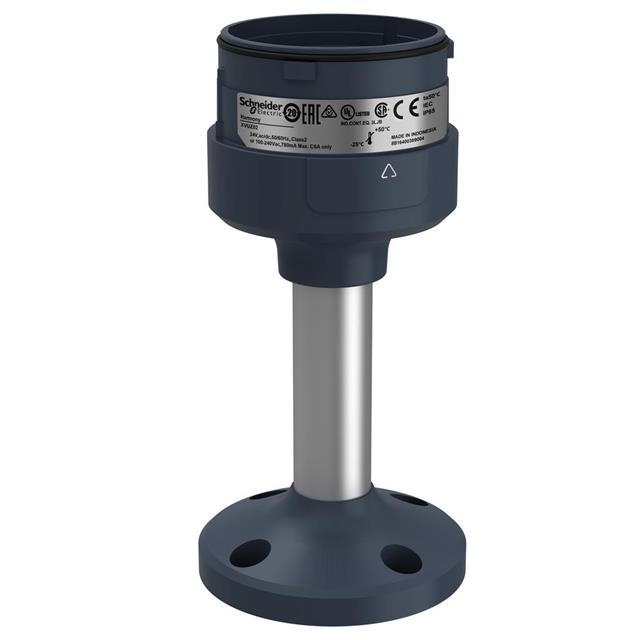

XVUZ02

Active

SQUARE D BY SCHNEIDER ELECTRIC

MOUNTING PLATE, MODULAR TOWER LIGHT

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

MOUNTING PLATE, MODULAR TOWER LIGHT

Technical Specifications

Parameters and characteristics for this part

Specification	XVUZ02

Ingress Protection	IP65 - Dust Tight, Water Resistant
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Type	Mounting Base, Fixing Plate

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Ingress Protection	Voltage - Supply	Weight	Weight	Termination Style
SQUARE D BY SCHNEIDER ELECTRIC XVUZ02Q	50 °C	-25 °C	110 VAC	240 VAC	Fixing Plate	IP65 - Dust Tight Water Resistant
SQUARE D BY SCHNEIDER ELECTRIC XVUZ05	50 °C	-25 °C			Fixing Plate	IP65 - Dust Tight Water Resistant	24 VAC	249.48 g	0.55 lb
SQUARE D BY SCHNEIDER ELECTRIC XVUZ01	50 °C	-25 °C			Fixing Plate	IP65 - Dust Tight Water Resistant		63.5 g	0.14 lb	Wire Leads
SQUARE D BY SCHNEIDER ELECTRIC XVUZ06	50 °C	-25 °C			Mounting Base	IP55 - Dust Protected Water Resistant		195.05 g	0.43 lb	Wire Leads
SQUARE D BY SCHNEIDER ELECTRIC XVUZ04	50 °C	-25 °C			Fixing Plate	IP65 - Dust Tight Water Resistant		303.91 g	0.67 lb
SQUARE D BY SCHNEIDER ELECTRIC XVUZ01Q	50 °C	-25 °C			Fixing Plate	IP65 - Dust Tight Water Resistant		63.5 g	0.14 lb	Wire Leads
SQUARE D BY SCHNEIDER ELECTRIC XVUZ03	50 °C	-25 °C	110 VAC	240 VAC	Fixing Plate	IP65 - Dust Tight Water Resistant				Wire Leads
SQUARE D BY SCHNEIDER ELECTRIC XVUZ02	50 °C	-25 °C			Fixing Plate Mounting Base	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Stack Light Mounting Base
