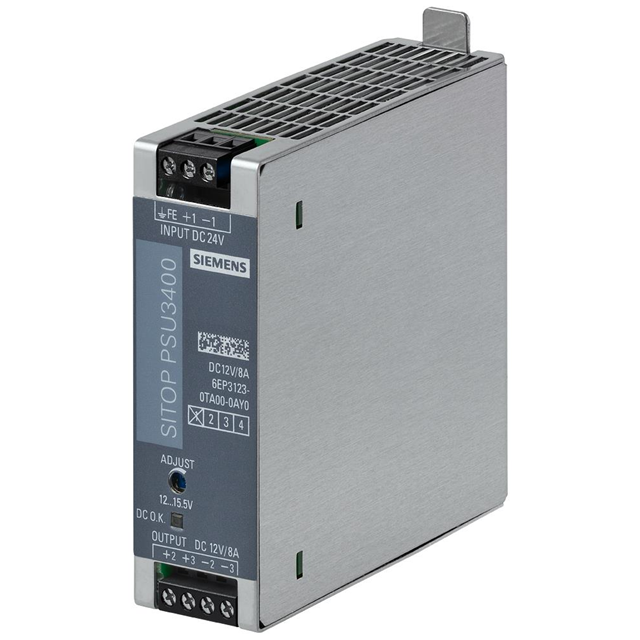

6EP31230TA000AY0
ActiveSiemens
DC/DC DIN RAIL SUPPLY 12V
Deep-Dive with AI
Search across all available documentation for this part.
6EP31230TA000AY0
ActiveSiemens
DC/DC DIN RAIL SUPPLY 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6EP31230TA000AY0 |
|---|---|
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | CE, CB, cULus |
| Current - Output (Max) [Max] | 8 A |
| DC Voltage - Input (Max) [Max] | 32 V |
| DC Voltage - Input (Min) [Min] | 14 V |
| Efficiency | 90 % |
| Features | Adjustable Output, IP20 |
| Input Type | DC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Size / Dimension [x] | 100 mm |
| Size / Dimension [x] | 3.94 in |
| Size / Dimension [y] | 32 mm |
| Size / Dimension [y] | 1.26 in |
| Size / Dimension [z] | 100 mm |
| Size / Dimension [z] | 3.94 in |
| Standard Number | 60950-1, UL 508 |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 276.06 | |
Description
General part information
6EP31230 Series
DC/DC DIN RAIL SUPPLY 12V
