Technical Specifications
Parameters and characteristics for this part
| Specification | EVLVIPGAN50FL |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 3.35 A |
| Main Purpose | AC/DC, Primary and Secondary Side with PFC |
| Outputs and Type | Isolated |
| Outputs and Type | 1 |
| Power - Output | 50 W |
| Regulator Topology | Flyback |
| Supplied Contents | Board(s) |
| Utilized IC / Part | VIPERGAN50 |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 15 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 91.25 | |
Description
General part information
EVLVIPGAN50FL Series

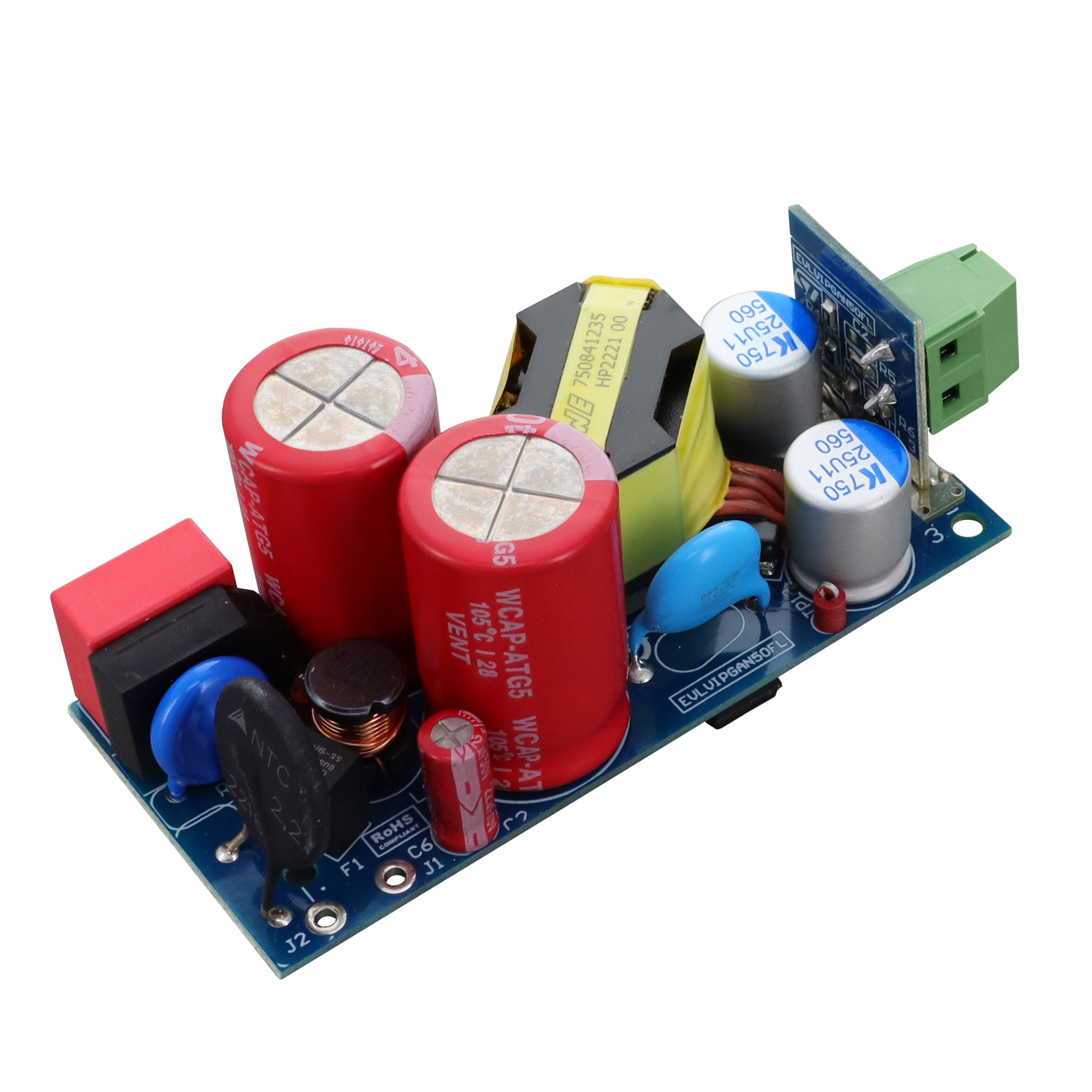

The EVLVIPGAN50FL evaluation board implements a 15 V-50 W SSR isolated flyback converter developed for general purpose application, operating from 90 to 265 VAC.
The reference design is built around the VIPERGAN50, a new advanced offline high-voltage converter by STMicroelectronics, having the following features:
- 650 V PowerGaN with embedded senseFET (Si) and HV startup;
