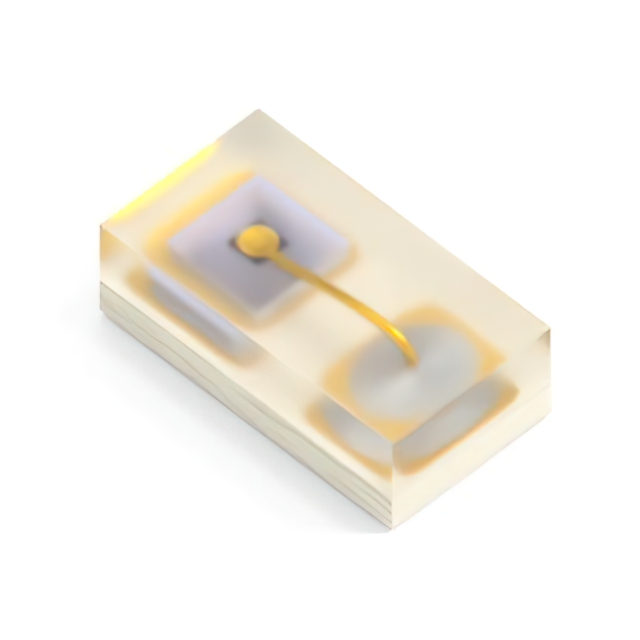

XZMOR155W
ActiveSunLED
LED ORANGE CLEAR 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZMOR155W
ActiveSunLED
LED ORANGE CLEAR 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZMOR155W |
|---|---|
| Configuration | Standard |
| Current - Test | 10 mA |
| Height (Max) [Max] | 0.25 mm |
| Lens Color | Colorless |
| Lens Size [x] | 0.65 mm |
| Lens Size [y] | 0.35 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 49 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 0.65 mm |
| Size / Dimension [y] | 0.35 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 135 ° |
| Voltage - Forward (Vf) (Typ) | 2.4 V |
| Wavelength - Dominant | 605 nm |
| Wavelength - Peak | 611 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.49 | |
| 10 | $ 0.30 | |||
| 100 | $ 0.17 | |||
| 1000 | $ 0.13 | |||
| 2000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.49 | ||
| 10 | $ 0.30 | |||
| 100 | $ 0.17 | |||
| 1000 | $ 0.13 | |||
| 2000 | $ 0.12 | |||
| Tape & Reel (TR) | 4000 | $ 0.12 | ||
| 8000 | $ 0.11 | |||
| 12000 | $ 0.10 | |||
| 28000 | $ 0.10 | |||
| 100000 | $ 0.09 | |||
Description
General part information
XZMOR155 Series
Orange 605nm LED Indication - Discrete 2.4V 2-SMD, No Lead
