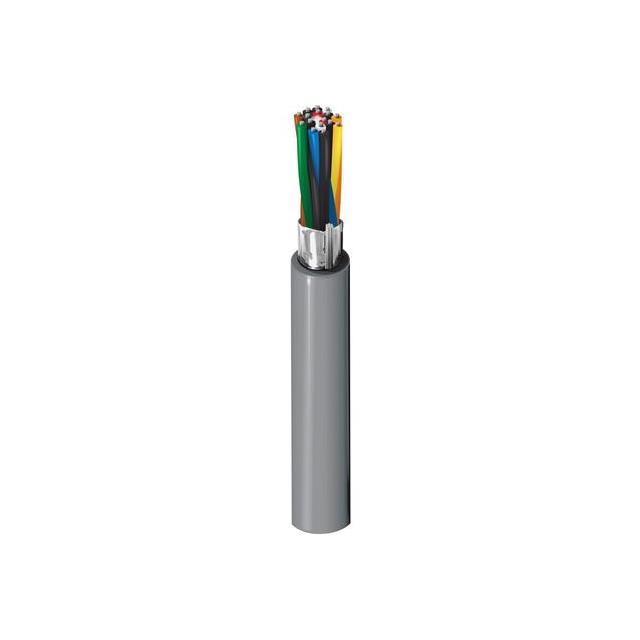

8138FO 0601000

Active

Belden Inc.

MULTI-PAIR 16COND 28AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 16COND 28AWG

Technical Specifications

Parameters and characteristics for this part

Specification	8138FO 0601000

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	16
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Wire Gauge	28 AWG

Part	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Conductor Insulation	Ratings	Number of Conductors	Usage	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Shield Coverage	Conductor Material	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Jacket (Insulation) Material	Shield Type
Belden Inc. 8138FO 0601000	Drain Wire	0.04 in	1.016 mm	28 AWG	Foam Polyethylene (FPE)	UL Style 2919	16	Computer	Chrome	36 AWG	7	1000 ft	304.8 m	100 %	Copper Tinned	Aluminum	-30 ░C	80 C	Multi-Pair	Poly-Vinyl Chloride (PVC)	Foil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 4.87

General part information

16 (8 Pair Twisted) Conductor Multi-Pair Cable Chrome 28 AWG Foil 1000.0' (304.8m)
