Technical Specifications
Parameters and characteristics for this part
| Specification | IRAUDAMP21 |
|---|---|
| Board Type | Fully Populated |
| Max Output Power x Channels @ Load | 120 W |
| Max Output Power x Channels @ Load [custom] | 3 Ohm |
| Max Output Power x Channels @ Load [x] | 2 |
| Output Type | 2-Channel (Stereo) |
| Supplied Contents | Board(s) |
| Utilized IC / Part | IR4321 |
| Voltage - Supply | 12 V |
| Voltage - Supply [Max] | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
IRAUDAMP21 Series

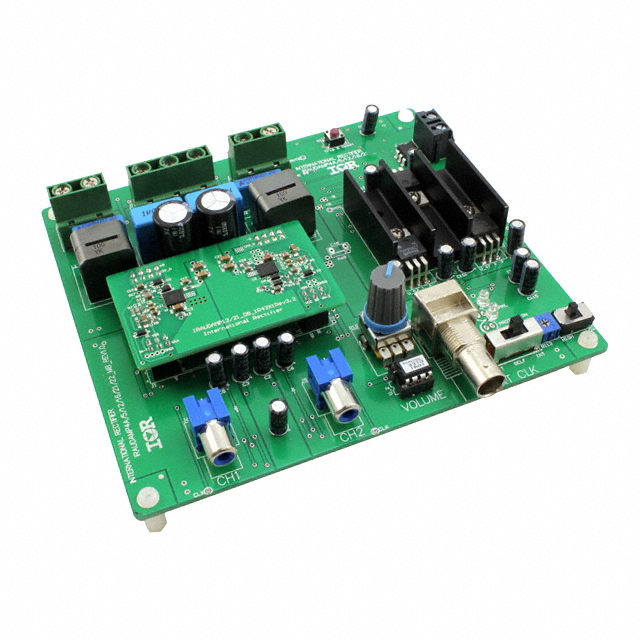

IRAUDAMP21 is a reference design. It is a two-channel, 90W/ch (2ohm/±18V; no heatsink)/ 135W/ch (2ohm/±22V; with heatsink) half-bridge Class D audio power amplifier. This reference design demonstrates how to use the IR4321 IC, implement protection circuits, and design an optimum PCB layout using PowIRaudio integrated Class D IC. This reference design does not require heatsink or fan cooling for normal operation (one-eighth of continuous rated power). The reference design provides all the required housekeeping power supplies for ease of use. The two-channel design is scalable for power and the number of channels. Typical applications include AV receivers, home theater systems, mini component stereos, powered speakers, sub-woofers, musical instrument amplifiers and car audio amplifiers.
