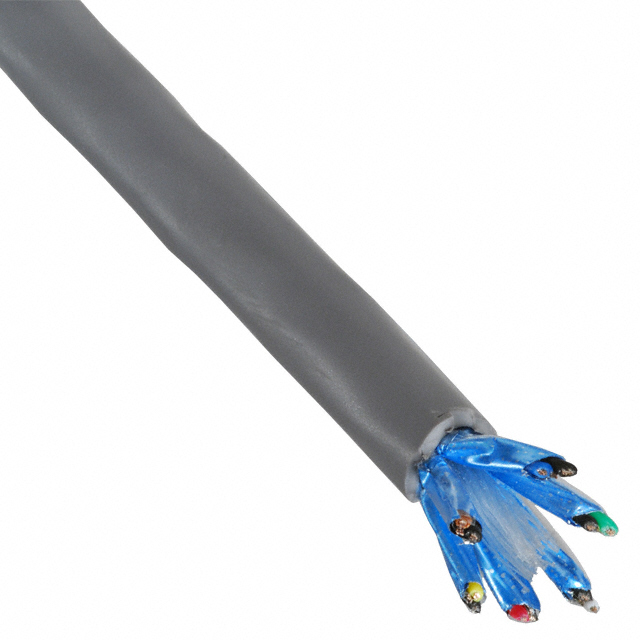

C6041A.38.10

Active

Prysmian Group

MULTI-PAIR 12COND 22AWG GRAY

Search across all available documentation for this part.

Active

Prysmian Group

MULTI-PAIR 12COND 22AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C6041A.38.10

Cable Type	Multi-Pair
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	9.68 mm
Jacket (Insulation) Diameter [diameter]	0.381 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	22 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Usage	Jacket (Insulation) Material	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Length	Length	Shield Coverage	Number of Conductors	Conductor Material	Voltage	Cable Type	Wire Gauge	Shield Type	Features
Prysmian Group C6041A.41.10	-20 C	80 C	30.5 m	100 ft	7	30 AWG	Polyethylene (PE)	Computer	Poly-Vinyl Chloride (PVC)	Gray	9.68 mm	0.381 in	Flexfoil®	1000 ft	304.8 m	100 %	12	Copper Tinned	300 V	Multi-Pair	22 AWG	Foil	Drain Wire
Prysmian Group C6041A.38.10	-20 C	80 C	152.4 m	500 '	7	30 AWG	Polyethylene (PE)	Computer	Poly-Vinyl Chloride (PVC)	Gray	9.68 mm	0.381 in	Flexfoil®			100 %	12	Copper Tinned	300 V	Multi-Pair	22 AWG	Foil	Drain Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	25000	$ 2.21

General part information

12 (6 Pair Twisted) Conductor Multi-Pair Cable Gray 22 AWG Foil 500.0' (152.4m)

Technical documentation and resources

No documents available
