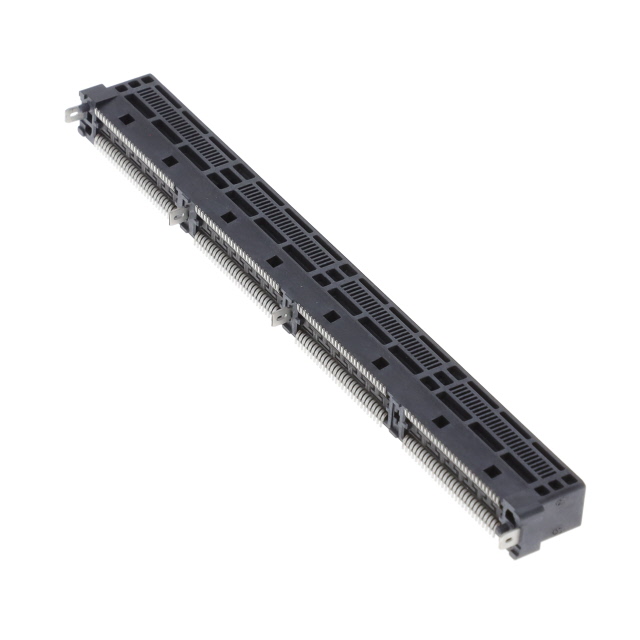

ME1022410103011

Active

Amphenol ICC (FCI)

CONN EDGE DUAL FML 224POS 0.024

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN EDGE DUAL FML 224POS 0.024

Technical Specifications

Parameters and characteristics for this part

Specification	ME1022410103011

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Gender	Female
Material - Insulation	Thermoplastic
Mounting Type	Surface Mount
Number of Positions	224
Number of Positions/Bay/Row [custom]	28
Number of Positions/Bay/Row [custom]	28
Number of Positions/Bay/Row [custom]	28
Number of Positions/Bay/Row [custom]	28
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.6 mm
Pitch [x]	0.024 in
Read Out	Dual
Termination	Solder

Part	Gender	Termination	Color	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Number of Positions	Number of Rows	Mounting Type	Pitch [x]	Pitch [x]	Read Out	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Card Thickness	Card Thickness	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Card Type
Amphenol ICC (FCI) ME1022410103011	Female	Solder	Black	Thermoplastic	105 ░C	-55 °C	Copper Alloy	224	2	Surface Mount	0.6 mm	0.024 in	Dual	0.76 Ám	30 Áin	Gold	0.062 in	1.57 mm	28	28	28	28	Non Specified - Dual Edge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

224 Position Female Connector Non Specified - Dual Edge Gold 0.024" (0.60mm) Black
