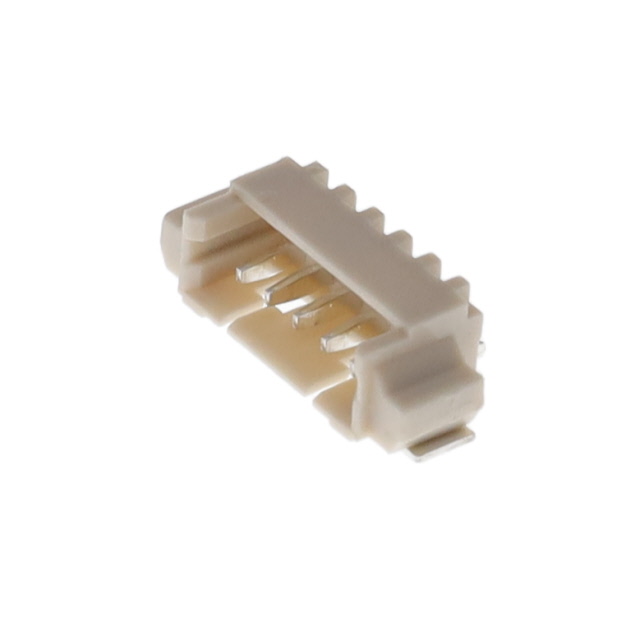

125SH-B-05-TR-SMT-T/R

Active

Adam Tech

CONN HEADER SMD R/A 5POS 1.25MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

125SH-B-05-TR-SMT-T/R

Active

Adam Tech

CONN HEADER SMD R/A 5POS 1.25MM

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	125SH-B-05-TR-SMT-T/R	125SH-B Series

Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Mating	-	0.083 "
Contact Length - Mating	-	2.1 mm
Contact Length - Mating	-	2.4 mm
Contact Length - Mating	-	0.094 in
Contact Length - Post	-	0.091 in
Contact Length - Post	-	2.3 mm
Contact Material	Brass	Brass
Contact Shape	Rectangular	Rectangular
Contact Type	Male Blade	Male Blade
Fastening Type	Friction Lock	Friction Lock
Features	Solder Retention	Solder Retention
Insulation Color	Natural	Natural, Ivory
Insulation Height	0.134 in	0.134 - 0.183 in
Insulation Height	3.4 mm	3.4 - 4.65 mm
Insulation Height	-	0.165 in
Insulation Height	-	4.2 mm
Insulation Material	-	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle, Surface Mount, Through Hole
Number of Positions	-	2 - 10
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overall Contact Length	-	0.232 in
Overall Contact Length	-	5.9 mm
Pitch - Mating	1.25 mm	1.25 mm
Pitch - Mating	0.049 in	0.049 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	100 VAC	100 - 250 VAC

125SH-B Series

CONN HEADER SMD R/A 5POS 1.25MM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Features	Shrouding	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish - Post	Contact Shape	Material Flammability Rating	Insulation Color	Contact Material	Connector Type	Voltage Rating	Fastening Type	Mounting Type	Number of Rows	Style	Termination	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Insulation Material	Contact Length - Mating [custom]	Contact Length - Mating [custom]
Adam Tech 125SH-B-05-TR-SMT-T/R	85 °C	-40 °C	0.134 in	3.4 mm	Solder Retention	Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Natural	Brass	Header	100 VAC	Friction Lock	Surface Mount, Right Angle	1	Board to Cable/Wire	Solder
Adam Tech 125SH-B-02-TS-SMT-T/R	85 °C	-40 °C	0.183 in	4.65 mm	Solder Retention	Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Ivory	Brass	Header	250 VAC	Friction Lock	Surface Mount	1	Board to Cable/Wire	Solder	0.083 "	2.1 mm	2
Adam Tech 125SH-B-05-TS-SMT-T/R	85 °C	-40 °C	0.183 in	4.65 mm	Solder Retention	Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Ivory	Brass	Header	250 VAC	Friction Lock	Surface Mount	1	Board to Cable/Wire	Solder	0.083 "	2.1 mm
Adam Tech 125SH-B-09-TS	85 °C	-40 °C				Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Natural	Brass	Header	125 VAC	Friction Lock	Through Hole	1	Board to Cable/Wire	Solder			9	0.165 in	4.2 mm	0.091 in	2.3 mm	0.232 in	5.9 mm	Polyamide (PA66), Nylon 6/6	2.4 mm	0.094 in
Adam Tech 125SH-B-03-TS	85 °C	-40 °C				Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Natural	Brass	Header	125 VAC	Friction Lock	Through Hole	1	Board to Cable/Wire	Solder				0.165 in	4.2 mm	0.091 in	2.3 mm	0.232 in	5.9 mm	Polyamide (PA66), Nylon 6/6	2.4 mm	0.094 in
Adam Tech 125SH-B-06-TS-SMT-T/R	85 °C	-40 °C	0.183 in	4.65 mm	Solder Retention	Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Ivory	Brass	Header	250 VAC	Friction Lock	Surface Mount	1	Board to Cable/Wire	Solder	0.083 "	2.1 mm	6
Adam Tech 125SH-B-09-TS-SMT-T/R	85 °C	-40 °C	0.183 in	4.65 mm	Solder Retention	Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Ivory	Brass	Header	250 VAC	Friction Lock	Surface Mount	1	Board to Cable/Wire	Solder	0.083 "	2.1 mm	9
Adam Tech 125SH-B-09-TR-SMT-T/R	85 °C	-40 °C	0.134 in	3.4 mm	Solder Retention	Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Natural	Brass	Header	100 VAC	Friction Lock	Surface Mount, Right Angle	1	Board to Cable/Wire	Solder			9
Adam Tech 125SH-B-06-TS	85 °C	-40 °C				Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Natural	Brass	Header	125 VAC	Friction Lock	Through Hole	1	Board to Cable/Wire	Solder			6	0.165 in	4.2 mm	0.091 in	2.3 mm	0.232 in	5.9 mm	Polyamide (PA66), Nylon 6/6	2.4 mm	0.094 in
Adam Tech 125SH-B-08-TS	85 °C	-40 °C				Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Natural	Brass	Header	125 VAC	Friction Lock	Through Hole	1	Board to Cable/Wire	Solder			8	0.165 in	4.2 mm	0.091 in	2.3 mm	0.232 in	5.9 mm	Polyamide (PA66), Nylon 6/6	2.4 mm	0.094 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.79
		10	$ 0.60
		100	$ 0.46
		500	$ 0.39
	Digi-Reel®	1	$ 0.79
		10	$ 0.60
		100	$ 0.46
		500	$ 0.39
	Tape & Reel (TR)	3000	$ 0.32
