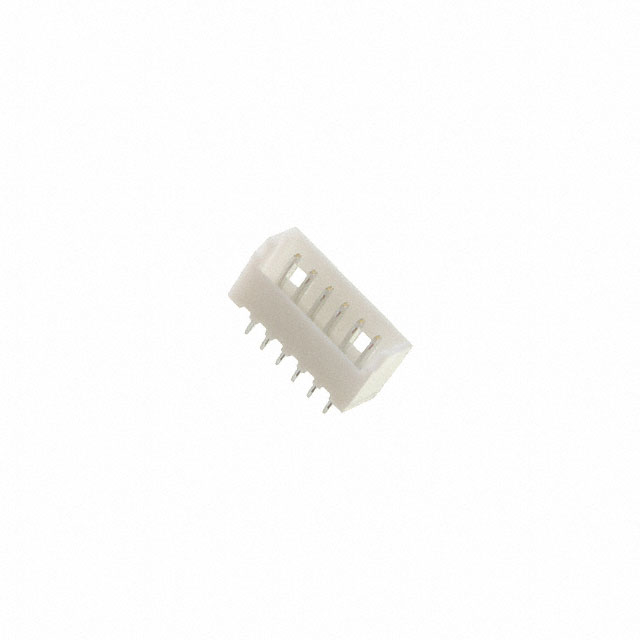

125SH-B-06-TS

Active

Adam Tech

CONN HEADER VERT 6POS 1.25MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

125SH-B-06-TS

Active

Adam Tech

CONN HEADER VERT 6POS 1.25MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.44
		10	$ 0.33
		100	$ 0.26
		500	$ 0.21
		1000	$ 0.20
		5000	$ 0.17
		10000	$ 0.16

Description

General part information

125SH-B Series

Connector Header Through Hole 6 position 0.049" (1.25mm)

Documents

Technical documentation and resources

ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Datasheet

Specification	125SH-B-06-TS	125SH-B Series

Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Mating	-	0.083 "
Contact Length - Mating	-	2.1 mm
Contact Length - Mating [custom]	2.4 mm	2.4 mm
Contact Length - Mating [custom]	0.094 in	0.094 in
Contact Length - Post	0.091 in	0.091 in
Contact Length - Post	2.3 mm	2.3 mm
Contact Material	Brass	Brass
Contact Shape	Rectangular	Rectangular
Contact Type	Male Blade	Male Blade
Fastening Type	Friction Lock	Friction Lock
Features	-	Solder Retention
Insulation Color	Natural	Natural, Ivory
Insulation Height	-	0.134 - 0.183 in
Insulation Height	-	3.4 - 4.65 mm
Insulation Height [z]	0.165 in	0.165 in
Insulation Height [z]	4.2 mm	4.2 mm
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Surface Mount, Right Angle, Surface Mount, Through Hole
Number of Positions	6	2 - 10
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overall Contact Length	0.232 in	0.232 in
Overall Contact Length	5.9 mm	5.9 mm
Pitch - Mating	1.25 mm	1.25 mm
Pitch - Mating	0.049 in	0.049 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	125 VAC	100 - 250 VAC

Part

Operating Temperature [Max]

Operating Temperature [Min]

Insulation Height

Features

Shrouding

Number of Positions Loaded

Pitch - Mating

Contact Type

Contact Finish - Post

Contact Shape

Material Flammability Rating

Insulation Color

Contact Material

Connector Type

Voltage Rating

Fastening Type

Mounting Type

Number of Rows

Style

Termination

Contact Length - Mating [x]

Contact Length - Mating

Number of Positions

Insulation Height [z]

Contact Length - Post

Overall Contact Length

Insulation Material

Contact Length - Mating [custom]

Adam Tech

125SH-B-05-TR-SMT-T/R

85 °C

-40 °C

0.134 in

3.4 mm

Solder Retention

Shrouded - 4 Wall

All

1.25 mm

0.049 in

Male Blade

Tin

Rectangular

UL94 V-0

Natural

Brass

Header

100 VAC

Friction Lock

Surface Mount, Right Angle

Board to Cable/Wire

Solder

Adam Tech

125SH-B-02-TS-SMT-T/R

85 °C

-40 °C

0.183 in

4.65 mm

Solder Retention

Shrouded - 4 Wall

All

1.25 mm

0.049 in

Male Blade

Tin

Rectangular

UL94 V-0

Ivory

Brass

Header

250 VAC

Friction Lock

Surface Mount

Board to Cable/Wire

Solder

0.083 "

2.1 mm

Adam Tech

125SH-B-05-TS-SMT-T/R

85 °C

-40 °C

0.183 in

4.65 mm

Solder Retention

Shrouded - 4 Wall

All

1.25 mm

0.049 in

Male Blade

Tin

Rectangular

UL94 V-0

Ivory

Brass

Header

250 VAC

Friction Lock

Surface Mount

Board to Cable/Wire

Solder

0.083 "

2.1 mm

Adam Tech

125SH-B-09-TS

85 °C

-40 °C

Shrouded - 4 Wall

All

1.25 mm

0.049 in

Male Blade

Tin

Rectangular

UL94 V-0

Natural

Brass

Header

125 VAC

Friction Lock

Through Hole

Board to Cable/Wire

Solder

0.165 in

4.2 mm

0.091 in

2.3 mm

0.232 in

5.9 mm

Polyamide (PA66), Nylon 6/6

2.4 mm

0.094 in

Adam Tech

125SH-B-03-TS

85 °C

-40 °C

Shrouded - 4 Wall

All

1.25 mm

0.049 in

Male Blade

Tin

Rectangular

UL94 V-0

Natural

Brass

Header

125 VAC

Friction Lock

Through Hole

Board to Cable/Wire

Solder

0.165 in

4.2 mm

0.091 in

2.3 mm

0.232 in

5.9 mm

Polyamide (PA66), Nylon 6/6

2.4 mm

0.094 in

Adam Tech

125SH-B-06-TS-SMT-T/R

85 °C

-40 °C

0.183 in

4.65 mm

Solder Retention

Shrouded - 4 Wall

All

1.25 mm

0.049 in

Male Blade

Tin

Rectangular

UL94 V-0

Ivory

Brass

Header

250 VAC

Friction Lock

Surface Mount

Board to Cable/Wire

Solder

0.083 "

2.1 mm

Adam Tech

125SH-B-09-TS-SMT-T/R

85 °C

-40 °C

0.183 in

4.65 mm

Solder Retention

Shrouded - 4 Wall

All

1.25 mm

0.049 in

Male Blade

Tin

Rectangular

UL94 V-0

Ivory

Brass

Header

250 VAC

Friction Lock

Surface Mount

Board to Cable/Wire

Solder

0.083 "

2.1 mm

Adam Tech

125SH-B-09-TR-SMT-T/R

85 °C

-40 °C

0.134 in

3.4 mm

Solder Retention

Shrouded - 4 Wall

All

1.25 mm

0.049 in

Male Blade

Tin

Rectangular

UL94 V-0

Natural

Brass

Header

100 VAC

Friction Lock

Surface Mount, Right Angle

Board to Cable/Wire

Solder

Adam Tech

125SH-B-06-TS

85 °C

-40 °C

Shrouded - 4 Wall

All

1.25 mm

0.049 in

Male Blade

Tin

Rectangular

UL94 V-0

Natural

Brass

Header

125 VAC

Friction Lock

Through Hole

Board to Cable/Wire

Solder

0.165 in

4.2 mm

0.091 in

2.3 mm

0.232 in

5.9 mm

Polyamide (PA66), Nylon 6/6

2.4 mm

0.094 in

Adam Tech

125SH-B-08-TS

85 °C

-40 °C

Shrouded - 4 Wall

All

1.25 mm

0.049 in

Male Blade

Tin

Rectangular

UL94 V-0

Natural

Brass

Header

125 VAC

Friction Lock

Through Hole

Board to Cable/Wire

Solder

0.165 in

4.2 mm

0.091 in

2.3 mm

0.232 in

5.9 mm

Polyamide (PA66), Nylon 6/6

2.4 mm

0.094 in

Part	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Features	Shrouding	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish - Post	Contact Shape	Material Flammability Rating	Insulation Color	Contact Material	Connector Type	Voltage Rating	Fastening Type	Mounting Type	Number of Rows	Style	Termination	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Insulation Material	Contact Length - Mating [custom]	Contact Length - Mating [custom]
Adam Tech 125SH-B-05-TR-SMT-T/R	85 °C	-40 °C	0.134 in	3.4 mm	Solder Retention	Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Natural	Brass	Header	100 VAC	Friction Lock	Surface Mount, Right Angle	1	Board to Cable/Wire	Solder
Adam Tech 125SH-B-02-TS-SMT-T/R	85 °C	-40 °C	0.183 in	4.65 mm	Solder Retention	Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Ivory	Brass	Header	250 VAC	Friction Lock	Surface Mount	1	Board to Cable/Wire	Solder	0.083 "	2.1 mm	2
Adam Tech 125SH-B-05-TS-SMT-T/R	85 °C	-40 °C	0.183 in	4.65 mm	Solder Retention	Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Ivory	Brass	Header	250 VAC	Friction Lock	Surface Mount	1	Board to Cable/Wire	Solder	0.083 "	2.1 mm
Adam Tech 125SH-B-09-TS	85 °C	-40 °C				Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Natural	Brass	Header	125 VAC	Friction Lock	Through Hole	1	Board to Cable/Wire	Solder			9	0.165 in	4.2 mm	0.091 in	2.3 mm	0.232 in	5.9 mm	Polyamide (PA66), Nylon 6/6	2.4 mm	0.094 in
Adam Tech 125SH-B-03-TS	85 °C	-40 °C				Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Natural	Brass	Header	125 VAC	Friction Lock	Through Hole	1	Board to Cable/Wire	Solder				0.165 in	4.2 mm	0.091 in	2.3 mm	0.232 in	5.9 mm	Polyamide (PA66), Nylon 6/6	2.4 mm	0.094 in
Adam Tech 125SH-B-06-TS-SMT-T/R	85 °C	-40 °C	0.183 in	4.65 mm	Solder Retention	Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Ivory	Brass	Header	250 VAC	Friction Lock	Surface Mount	1	Board to Cable/Wire	Solder	0.083 "	2.1 mm	6
Adam Tech 125SH-B-09-TS-SMT-T/R	85 °C	-40 °C	0.183 in	4.65 mm	Solder Retention	Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Ivory	Brass	Header	250 VAC	Friction Lock	Surface Mount	1	Board to Cable/Wire	Solder	0.083 "	2.1 mm	9
Adam Tech 125SH-B-09-TR-SMT-T/R	85 °C	-40 °C	0.134 in	3.4 mm	Solder Retention	Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Natural	Brass	Header	100 VAC	Friction Lock	Surface Mount, Right Angle	1	Board to Cable/Wire	Solder			9
Adam Tech 125SH-B-06-TS	85 °C	-40 °C				Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Natural	Brass	Header	125 VAC	Friction Lock	Through Hole	1	Board to Cable/Wire	Solder			6	0.165 in	4.2 mm	0.091 in	2.3 mm	0.232 in	5.9 mm	Polyamide (PA66), Nylon 6/6	2.4 mm	0.094 in
Adam Tech 125SH-B-08-TS	85 °C	-40 °C				Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Natural	Brass	Header	125 VAC	Friction Lock	Through Hole	1	Board to Cable/Wire	Solder			8	0.165 in	4.2 mm	0.091 in	2.3 mm	0.232 in	5.9 mm	Polyamide (PA66), Nylon 6/6	2.4 mm	0.094 in
