EGG.2B.670.ZZM
ActiveLEMO
CONTACT SOCKET 14-18AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EGG.2B.670.ZZM
ActiveLEMO
CONTACT SOCKET 14-18AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EGG.2B.670.ZZM | EGG.2B Series |
|---|---|---|
| Color | - | Silver |
| Connector Type | - | Receptacle, Female Sockets, Female Sockets, Insert, Receptacle, Male Pins, Receptacle Housing |
| Contact Finish | Gold | Gold |
| Contact Finish - Mating | - | Gold |
| Contact Finish Thickness - Mating | - | 39.4 - 59 Áin |
| Contact Finish Thickness - Mating | - | 1 - 1.5 Ám |
| Contact Material | Bronze | Bronze, Brass |
| Contact Shape | - | Circular |
| Contact Size | 1.6 mm | 0.5 - 2 mm |
| Contact Termination | Crimp | Crimp, Solder Cup |
| Contact Type | Socket | Socket, Crimp and Solder Cup, Crimp |
| Current Rating (Amps) | - | 2 - 25 A |
| Fastening Type | - | Push-Pull, Detent Lock |
| Features | - | Insert Only, Requires Shell |
| Housing Color | - | Silver |
| Ingress Protection | - | IP50 |
| Insert Material | - | Polyetheretherketone (PEEK) |
| Material Flammability Rating | - | UL94 V-0 |
| Mounting Feature | - | Bulkhead - Rear Side Nut |
| Mounting Type | - | Through Hole, Panel Mount |
| Note | - | Note: Contacts Not Included; Insert Only, Requires Shell, Contacts Not Included |
| Number of Positions | - | 2 - 26 |
| Number of Positions | - | 11 |
| Number of Positions | - | 1 |
| Number of Positions | - | 4 - 10 |
| Number of Positions | - | 1 |
| Number of Positions | - | 16 |
| Number of Positions | - | 1 |
| Number of Positions | - | 6 |
| Number of Positions | - | 10 |
| Number of Positions | - | 1 |
| Number of Positions | - | 1 |
| Operating Temperature | - | -55 °C |
| Operating Temperature | - | 250 °C |
| Orientation | - | G |
| Primary Material | - | Metal |
| Shell Finish | - | Chrome |
| Shell Material | - | Brass |
| Shell Size - Insert | - | 13 - 810 |
| Shell Size - Insert | - | 96J, 92C |
| Shielding | - | Shielded, Unshielded |
| Termination | - | Solder, Crimp |
| Type | Signal, Machined | Signal, Machined, For Female Sockets |
| Wire Gauge or Range - AWG [Max] | 18 AWG | 16 - 32 AWG |
| Wire Gauge or Range - AWG [Min] | 14 AWG | 12 - 28 AWG |
| Wire Gauge or Range - mm˛ | - | 0.34 - 2.5 mm˛ |
| Wire Gauge or Range - mm˛ | - | 0.14 - 1.5 mm˛ |
| Wire Gauge or Range - mm² [Max] | 1.5 mm² | 0.09 - 1.5 mm² |
| Wire Gauge or Range - mm² [Min] | 1 mm² | 0.04 - 1 mm² |
EGG.2B Series
CONN RCPT FMALE 6POS GOLD SOLDER
...
| Part | Connector Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Orientation | Shell Material | Contact Finish - Mating | Mounting Feature | Shielding | Fastening Type | Ingress Protection | Current Rating (Amps) | Color | Material Flammability Rating | Shell Size - Insert | Primary Material | Mounting Type | Number of Positions | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Finish | Features | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Contact Termination | Type | Contact Finish | Contact Size | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Contact Type | Number of Positions [custom] | Number of Positions | Number of Positions [custom] | Number of Positions [custom] | Note | Contact Shape | Housing Color | Wire Gauge or Range - mm˛ [Max] | Wire Gauge or Range - mm˛ [Min] | Number of Positions [custom] | Number of Positions [custom] | Shell Size - Insert | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EGG.2B.306.CLN | Receptacle, Female Sockets | Solder | -55 °C | 250 °C | Polyetheretherketone (PEEK) | G | Brass | Gold | Bulkhead - Rear Side Nut | Shielded | Push-Pull | IP50 | 12 A | Silver | UL94 V-0 | 306 | Metal | Panel Mount, Through Hole | 6 | Bronze | 59 Áin | 1.5 Ám | Chrome | ||||||||||||||||||||||||||
LEMO EGG.2B.810.ZLL | Female Sockets, Insert | -55 °C | 250 °C | Polyetheretherketone (PEEK) | G | Gold | Shielded | IP50 | 7 A | UL94 V-0 | 810 | Bronze | 59 Áin | 1.5 Ám | Insert Only, Requires Shell | 11 | 1 | 10 | |||||||||||||||||||||||||||||||
LEMO EGG.2B.665.ZZK | Bronze | 18 AWG | 20 AWG | Crimp | Machined, Signal | Gold | 1.3 mm | 1 mm² | 0.5 mm² | Socket | |||||||||||||||||||||||||||||||||||||||
LEMO EGG.2B.804.CLL1 | Receptacle, Female Sockets | -55 °C | 250 °C | Polyetheretherketone (PEEK) | G | Brass | Gold | Bulkhead - Rear Side Nut | Shielded | Push-Pull | IP50 | 7 A | Silver | UL94 V-0 | 804 | Metal | Bronze | 59 Áin | 1.5 Ám | Chrome | 4 | 1 | |||||||||||||||||||||||||||
LEMO EGG.2B.303.CLL | Receptacle, Female Sockets | -55 °C | 250 °C | Polyetheretherketone (PEEK) | G | Brass | Gold | Bulkhead - Rear Side Nut | Shielded | Push-Pull | IP50 | 17 A | Silver | UL94 V-0 | 303 | Metal | Bronze | 59 Áin | 1.5 Ám | Chrome | |||||||||||||||||||||||||||||
LEMO EGG.2B.318.CLN | Receptacle, Female Sockets | Solder | -55 °C | 250 °C | Polyetheretherketone (PEEK) | G | Brass | Gold | Bulkhead - Rear Side Nut | Shielded | Push-Pull | IP50 | 5.5 Amps | Silver | UL94 V-0 | 318 | Metal | Panel Mount, Through Hole | 18 | Bronze | 59 Áin | 1.5 Ám | Chrome | ||||||||||||||||||||||||||
LEMO EGG.2B.319.ZYM | Female Sockets, Insert | Crimp | -55 °C | 250 °C | Polyetheretherketone (PEEK) | G | Gold | Shielded | IP50 | 5 A | UL94 V-0 | 319 | 19 | Bronze | 59 Áin | 1.5 Ám | Insert Only, Requires Shell | ||||||||||||||||||||||||||||||||
LEMO EGG.2B.436.CJA | Male Pins, Receptacle | -55 °C | 250 °C | Polyetheretherketone (PEEK) | G | Brass | Gold | Bulkhead - Rear Side Nut | Shielded | Push-Pull | IP50 | 2.5 A | Silver | UL94 V-0 | 436 | Metal | 6 | Brass | 39.4 µin | 1 µm | Chrome | ||||||||||||||||||||||||||||
LEMO EGG.2B.314.ZLL | Female Sockets, Insert | -55 °C | 250 °C | Polyetheretherketone (PEEK) | G | Gold | Shielded | IP50 | 6.5 A | UL94 V-0 | 314 | 14 | Bronze | 59 Áin | 1.5 Ám | Insert Only, Requires Shell | |||||||||||||||||||||||||||||||||
LEMO EGG.2B.316.ZYM | Female Sockets, Insert | Crimp | -55 °C | 250 °C | Polyetheretherketone (PEEK) | G | Gold | Shielded | IP50 | 6 A | UL94 V-0 | 316 | Bronze | 59 Áin | 1.5 Ám | Insert Only, Requires Shell | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.25 | |
| 10 | $ 4.77 | |||
| 25 | $ 4.52 | |||
| 50 | $ 4.41 | |||
| 100 | $ 4.20 | |||
| 250 | $ 3.68 | |||
| 500 | $ 3.57 | |||
| 1000 | $ 3.05 | |||
| 2500 | $ 2.84 | |||
Description
General part information
EGG.2B Series

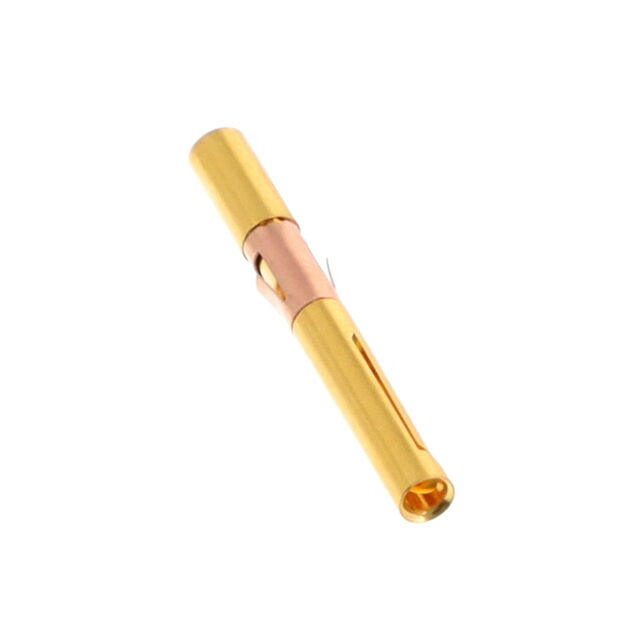

Socket Contact 14-18 AWG Size 1.6mm Crimp Gold
Documents
Technical documentation and resources
