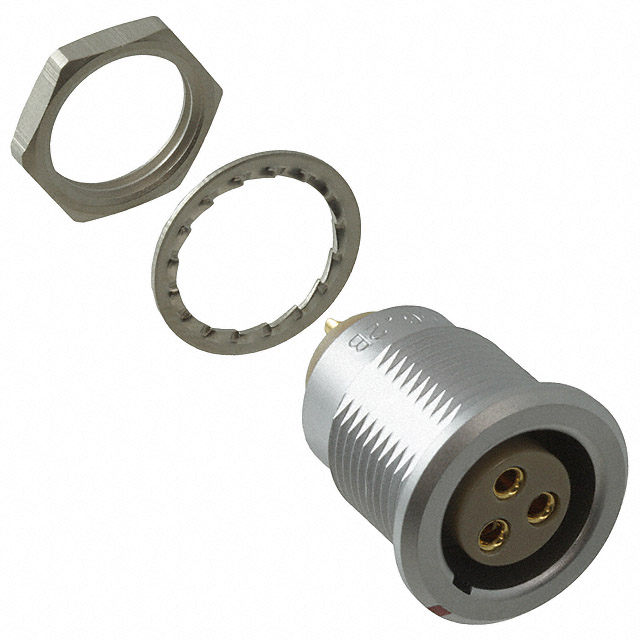

Circular Push Pull Connectors 19P CRIMP SCKT RECPT CABLE COLLET 7.2MM
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | EGG.2B.303.CLL | 2B Series |
|---|---|---|
| Accessory Type | - | Strain Relief, Collet |
| Backshell Material, Plating | - | Brass, Chrome |
| Cable Opening | - | 0.244 - 0.283 in |
| Cable Opening | - | 0.362 - 7.2 mm |
| Cable Opening | - | 0.323 - 0.362 in |
| Cable Opening | - | 4.2 - 9.2 mm |
| Cable Opening | - | 0.165 - 0.205 in |
| Cable Opening | - | 5.2 mm |
| Cable Opening | - | 6.2 - 8.2 mm |
| Cable Opening | - | 5.2 - 7.2 mm |
| Cable Opening | - | 0.205 - 0.283 in |
| Cable Opening | - | 0.244 - 0.323 in |
| Cable Opening | - | 9.2 - 9.9 mm |
| Cable Opening | - | 0.122 - 0.126 in |
| Cable Opening | - | 0.157 - 0.165 in |
| Cable Opening | - | 4 - 4.2 mm |
| Cable Opening | - | 3.1 - 3.2 mm |
| Color | Silver | Silver, Blue, White |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Plug, Male Pins, Female Sockets, Receptacle |
| Contact Finish | - | Gold |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness | - | 39.4 Áin |
| Contact Finish Thickness | - | 1 Ám |
| Contact Finish Thickness - Mating | 59 Áin | 39.4 - 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1 - 1.5 Ám |
| Contact Material | Bronze | Bronze, Brass |
| Contact Size | - | 0.7 mm |
| Contact Termination | - | Crimp |
| Contact Type | - | Pin |
| Current Rating (Amps) | 17 A | 1.5 - 25 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | - | Backshell, Lanyard |
| For Use With/Related Products | - | 2S Series Connector, 2B Series Connector, 2E, 2L, 2K |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material | - | Copper, Thermoplastic Polyurethane (TPU) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut, Front and Rear Side Nut, Bulkhead - Front Side Nut |
| Mounting Type | - | Free Hanging (In-Line), Through Hole, Panel Mount, Right Angle |
| Number of Positions | - | 2 - 26 |
| Number of Positions | - | 11 |
| Number of Positions | - | 1 |
| Number of Positions | - | 10 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G, J, B, C, A |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 303 | 302 - 810 |
| Shielding | Shielded | Shielded |
| Termination | - | Crimp, Solder |
| Type | - | Signal, Machined |
| Wire Gauge or Range - AWG | - | 22 AWG |
| Wire Gauge or Range - AWG | - | 26 AWG |
| Wire Gauge or Range - mm² | - | 0.14 mm² |
| Wire Gauge or Range - mm² | - | 0.34 mm² |
Circular Push Pull Connectors 19P CRIMP SCKT RECPT CABLE COLLET 7.2MM
| Part | Backshell Material, Plating | Material Flammability Rating | Cable Opening [custom] | Cable Opening [custom] | Shell Size - Insert | Shielding | Termination | Connector Type | Primary Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Features | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Insert Material | Current Rating (Amps) | Mounting Type | Color | Number of Positions | Ingress Protection | Fastening Type | Shell Material | Shell Finish | Cable Opening [diameter] | Cable Opening [diameter] | Mounting Feature | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Contact Size | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Contact Finish | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Contact Type | Contact Termination | Type | Contact Finish Thickness | Contact Finish Thickness | Cable Opening [custom] | For Use With/Related Products | Accessory Type | Material | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Brass, Chrome | UL94 V-0 | 0.244 in, 0.283 in | 6.2 mm, 7.2 mm | 319 | Shielded | Crimp | Receptacle, Female Sockets | Metal | 59 Áin | 1.5 Ám | Bronze | Backshell | G | -55 °C | 250 °C | Gold | Polyetheretherketone (PEEK) | 5 A | Free Hanging (In-Line) | Silver | 19 | IP50 | Push-Pull | Brass | Chrome | ||||||||||||||||||||||||||||||||
Brass, Chrome | UL94 V-0 | 0.244 in, 0.283 in | 6.2 mm, 7.2 mm | 319 | Shielded | Crimp | Male Pins, Plug | Metal | 39.4 µin | 1 µm | Brass | Backshell | G | -55 °C | 250 °C | Gold | Polyetheretherketone (PEEK) | 5 A | Free Hanging (In-Line) | Silver | 19 | IP50 | Push-Pull | Brass | Chrome | ||||||||||||||||||||||||||||||||
Brass, Chrome | UL94 V-0 | 308 | Shielded | Female Sockets, Plug | Metal | 59 Áin | 1.5 Ám | Bronze | Backshell | J | -55 °C | 250 °C | Gold | Polyetheretherketone (PEEK) | 10 A | Free Hanging (In-Line) | Silver | 8 | IP50 | Push-Pull | Brass | Chrome | 0.323 in, 0.362 in | 8.2 mm, 9.2 mm | |||||||||||||||||||||||||||||||||
Brass, Chrome | UL94 V-0 | 308 | Shielded | Male Pins, Plug | Metal | 39.4 µin | 1 µm | Brass | Backshell, Lanyard | G | -55 °C | 250 °C | Gold | Polyetheretherketone (PEEK) | 10 A | Free Hanging (In-Line) | Silver | 8 | IP50 | Push-Pull | Brass | Chrome | 0.323 in, 0.362 in | 8.2 mm, 9.2 mm | |||||||||||||||||||||||||||||||||
LEMO FWG.2B.314.CLV | Brass, Chrome | UL94 V-0 | 314 | Shielded | Solder | Male Pins, Plug | Metal | 39.4 µin | 1 µm | Brass | G | -55 °C | 250 °C | Gold | Polyetheretherketone (PEEK) | 6.5 A | Panel Mount, Through Hole | Silver | 14 | IP50 | Push-Pull | Brass | Chrome | Bulkhead - Rear Side Nut | |||||||||||||||||||||||||||||||||
Brass, Chrome | UL94 V-0 | 306 | Shielded | Receptacle, Female Sockets | Metal | 59 Áin | 1.5 Ám | Bronze | Backshell | G | -55 °C | 250 °C | Gold | Polyetheretherketone (PEEK) | 12 A | Free Hanging (In-Line) | Silver | 6 | IP50 | Push-Pull | Brass | Chrome | 4.2 mm | 0.165 in, 0.205 in | 5.2 mm | ||||||||||||||||||||||||||||||||
LEMO EGG.2B.303.CLL | UL94 V-0 | 303 | Shielded | Receptacle, Female Sockets | Metal | 59 Áin | 1.5 Ám | Bronze | G | -55 °C | 250 °C | Gold | Polyetheretherketone (PEEK) | 17 A | Silver | IP50 | Push-Pull | Brass | Chrome | Bulkhead - Rear Side Nut | |||||||||||||||||||||||||||||||||||||
Brass, Chrome | UL94 V-0 | 307 | Shielded | Male Pins, Plug | Metal | 39.4 µin | 1 µm | Brass | Backshell | B | -55 °C | 250 °C | Gold | Polyetheretherketone (PEEK) | 11 A | Free Hanging (In-Line) | Silver | 7 | IP50 | Push-Pull | Brass | Chrome | 8.2 mm | 7.2 mm | 0.283 in | 0.323 in | |||||||||||||||||||||||||||||||
Brass, Chrome | UL94 V-0 | 0.244 in, 0.283 in | 6.2 mm, 7.2 mm | 314 | Shielded | Crimp | Receptacle, Female Sockets | Metal | 59 Áin | 1.5 Ám | Bronze | Backshell | G | -55 °C | 250 °C | Gold | Polyetheretherketone (PEEK) | 6.5 A | Free Hanging (In-Line), Panel Mount | Silver | 14 | IP50 | Push-Pull | Brass | Chrome | Bulkhead - Rear Side Nut | |||||||||||||||||||||||||||||||
Brass, Chrome | UL94 V-0 | 0.244 in, 0.283 in | 6.2 mm, 7.2 mm | 306 | Shielded | Female Sockets, Plug | Metal | 59 Áin | 1.5 Ám | Bronze | Backshell | J | -55 °C | 250 °C | Gold | Polyetheretherketone (PEEK) | 12 A | Free Hanging (In-Line) | Silver | 6 | IP50 | Push-Pull | Brass | Chrome |
