150206-2000-RB-WB

Active

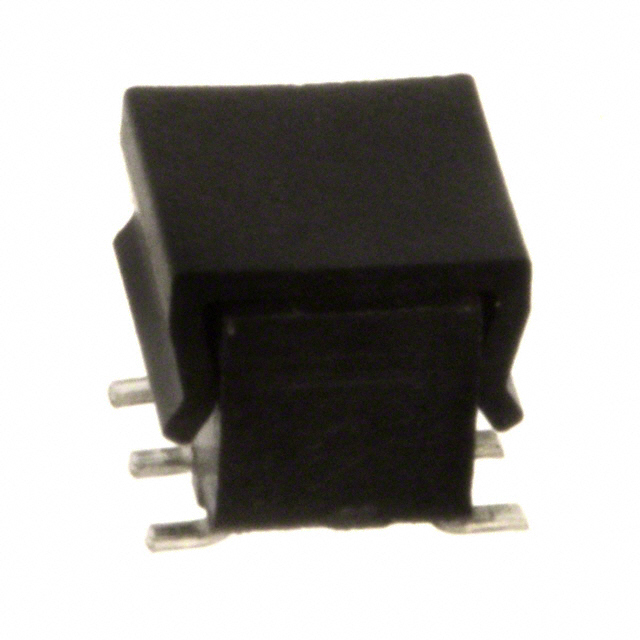

CONN RCPT 6POS 0.079 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

150206-2000-RB-WB

Active

CONN RCPT 6POS 0.079 GOLD SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.78
		10	$ 1.55
	Digi-Reel®	1	$ 2.11
		10	$ 1.61
	Tape & Reel (TR)	2400	$ 1.31

Description

General part information

150206 Series

6 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	150206-2000-RB-WB	150206 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	15 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	-	0.055 in
Contact Length - Post	-	1.4 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	Pick and Place	Pick and Place, Board Guide
Insulation Color	Black	Black
Insulation Height	4.65 mm	4.5 - 4.65 mm
Insulation Height	0.183 in	0.177 - 0.183 in
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount, Through Hole
Number of Positions	6	6
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

150206 Series

CONN RCPT 6POS 0.079 GOLD SMD

Part	Number of Positions Loaded	Style	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Contact Shape	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating [x]	Pitch - Mating [x]	Voltage Rating	Features	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Contact Finish - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Number of Rows	Insulation Height	Insulation Height	Mounting Type	Insulation Material	Termination	Connector Type	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]
3M 150206-2000-RB-WB	All	Board to Board, Cable	0.079 in	2 mm	UL94 V-0	Square	Black	105 ░C	-55 °C	0.079 in	2 mm	500 V	Pick and Place	6	200 µin	5.08 µm	Push-Pull	Gold	Tin	30 Áin	0.76 Ám	Copper Alloy	2	4.65 mm	0.183 in	Surface Mount	Thermoplastic	Solder	Receptacle	Female Socket
3M 150206-2000-TH	All	Board to Board, Cable	0.079 in	2 mm	UL94 V-0	Square	Black	105 ░C	-55 °C	0.079 in	2 mm	500 V		6	200 µin	5.08 µm	Push-Pull	Gold	Tin	15 µin	0.38 µm	Copper Alloy	2	4.65 mm	0.183 in	Surface Mount	Thermoplastic	Solder	Receptacle	Female Socket
3M 150206-2000-RB	All	Board to Board, Cable	0.079 in	2 mm	UL94 V-0	Square	Black	105 ░C	-55 °C	0.079 in	2 mm	500 V		6	200 µin	5.08 µm	Push-Pull	Gold	Tin	30 Áin	0.76 Ám	Copper Alloy	2	4.65 mm	0.183 in	Surface Mount	Thermoplastic	Solder	Receptacle	Female Socket
3M 150206-2020-RB-WB	All	Board to Board, Cable	0.079 in	2 mm	UL94 V-0	Square	Black	105 ░C	-55 °C	0.079 in	2 mm	500 V	Board Guide, Pick and Place	6	200 µin	5.08 µm	Push-Pull	Gold	Tin	30 Áin	0.76 Ám	Copper Alloy	2	4.65 mm	0.183 in	Surface Mount	Thermoplastic	Solder	Receptacle	Female Socket
3M 150206-6001-TH	All	Board to Board, Cable	0.079 in	2 mm	UL94 V-0	Square	Black	105 ░C	-55 °C	0.079 in	2 mm	500 V		6	200 µin	5.08 µm	Push-Pull	Gold	Tin	15 µin	0.38 µm	Copper Alloy	2	4.5 mm	0.177 in	Through Hole	Thermoplastic	Solder	Receptacle	Female Socket	0.055 in	1.4 mm
