R143331161

Active

Radiall USA, Inc.

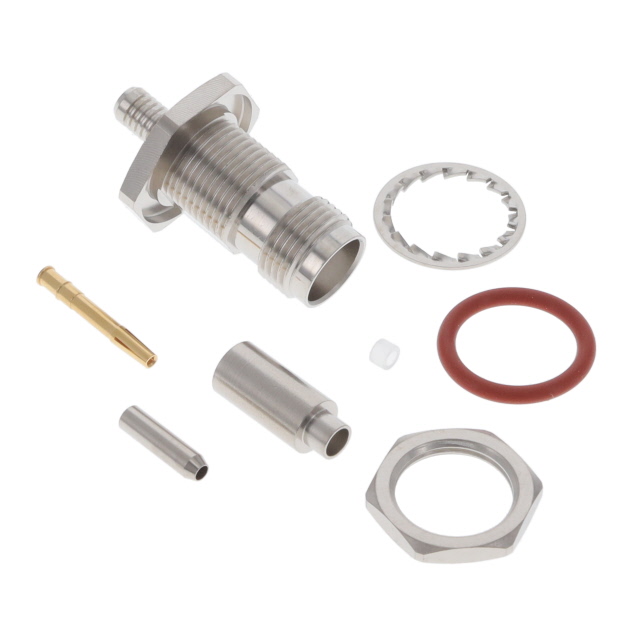

TNC / STRAIGHT BULKHEAD JACK PAN

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TNC / STRAIGHT BULKHEAD JACK PAN

Technical Specifications

Parameters and characteristics for this part

Specification	R143331161

Body Finish	Nickel
Body Material	Brass
Cable Group	316, RG-188
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	1.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-35 °C
Shield Termination	Solder
Voltage Rating	335 V

Part	Frequency - Max [Max]	Voltage Rating	Connector Style	Center Contact Plating	Cable Group	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Dielectric Material	Body Finish	Impedance	Contact Termination	Body Material	Connector Type	Housing Color	Number of Ports	Mounting Feature
Radiall USA, Inc. R143331161	1.5 GHz	335 V	TNC	Gold	316 RG-188	Solder	-35 °C	70 °C	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Nickel	50 Ohms	Solder	Brass	Female Socket Jack	Silver	1	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder
