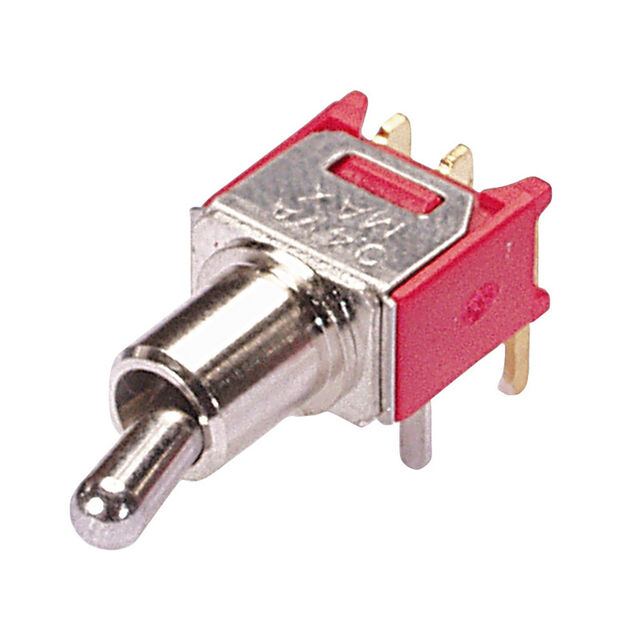

34CMDP51B5M1RT

Active

Grayhill Inc.

SWITCH TOGGLE DPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

34CMDP51B5M1RT

Active

Grayhill Inc.

SWITCH TOGGLE DPDT 0.4VA 20V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 7.24

Description

General part information

34CMDP Series

Toggle Switch DPDT Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	34CMDP51B5M1RT	34CMDP Series

Actuator Length [x]	7.11 mm	0.5 - 13.97 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	1/4-40	Unthreaded, 1/4-40, 10-48
Circuit	DPDT	DPDT
Current Rating (Amps)	0.4 VA	0.4 - 3 VA
Electrical Life	30000 Cycles	30000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	-	Through Hole, Vertical, Right Angle, Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in	0.25 - 4.95 in
Switch Function	On-Off-Mom	On-On, On-Off-On, Mom-Off-Mom, On-Off-Mom
Termination Style	Solder Lug	PC Pin, Solder Lug
Voltage Rating - AC	20 V	20 - 125 V
Voltage Rating - DC	20 V	20 - 28 V

34CMDP Series

SWITCH TOGGLE ON NONE ON DPDT ROUND LEVER PC PINS 20VAC 20VDC 0.4VA PC MOUNT WITH BRACKET

Part	Illumination	Mounting Type	Features	Voltage Rating - AC	Actuator Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Electrical Life	Current Rating (Amps)	Switch Function	Bushing Thread	Circuit	Actuator Material	Actuator Type	Termination Style	Panel Cutout Dimensions [diameter]
Grayhill Inc. 34CMDP11B2M7RT	Non-Illuminated	Right Angle, Through Hole, Vertical	Epoxy Sealed Terminals	20 V	9.4 mm	-30 ░C	85 °C	20 V	30000 Cycles	0.4 VA	On-On	Unthreaded	DPDT	Brass, Chrome Plated	Standard Round	PC Pin
Grayhill Inc. 34CMDP34B5M2RT	Non-Illuminated		Epoxy Sealed Terminals	20 V	10.41 mm	-30 ░C	85 °C	20 V	30000 Cycles	0.4 VA	On-Off-On	1/4-40	DPDT	Brass, Chrome Plated	Standard Round	PC Pin	0.25 in
Grayhill Inc. 34CMDP42B4M6RT	Non-Illuminated	Through Hole, Right Angle	Epoxy Sealed Terminals	20 V	5.33 mm	-30 ░C	85 °C	20 V	30000 Cycles	0.4 VA	Mom-Off-Mom	Unthreaded	DPDT	Brass, Chrome Plated	Standard Round	PC Pin
Grayhill Inc. 34CMDP51B5M1RT	Non-Illuminated		Epoxy Sealed Terminals	20 V	7.11 mm	-30 ░C	85 °C	20 V	30000 Cycles	0.4 VA	On-Off-Mom	1/4-40	DPDT	Brass, Chrome Plated	Standard Round	Solder Lug	0.25 in
Grayhill Inc. 34CMDP31B1M1RT	Non-Illuminated		Epoxy Sealed Terminals	20 V	9.4 mm	-30 ░C	85 °C	20 V	30000 Cycles	0.4 VA	On-Off-On	10-48	DPDT	Brass, Chrome Plated	Standard Round	Solder Lug	4.95 mm
Grayhill Inc. 34CMDP15B1M7RT	Non-Illuminated	Panel Mount, Right Angle, Vertical	Epoxy Sealed Terminals	20 V	7.88 mm	-30 ░C	85 °C	20 V	30000 Cycles	0.4 VA	On-On	10-48	DPDT	Brass, Chrome Plated	Standard Round	PC Pin	4.95 mm
Grayhill Inc. 34CMDP12B1V3RT	Non-Illuminated		Epoxy Sealed Terminals	20 V	5.33 mm	-30 ░C	85 °C	20 V	30000 Cycles	0.4 VA	On-On	10-48	DPDT	Brass, Chrome Plated	Standard Round	PC Pin	4.95 mm
Grayhill Inc. 34CMDP14B5M6RT	Non-Illuminated	Panel Mount, Right Angle	Epoxy Sealed Terminals	20 V	10.41 mm	-30 ░C	85 °C	20 V	30000 Cycles	0.4 VA	On-On	1/4-40	DPDT	Brass, Chrome Plated	Standard Round	PC Pin	0.25 in
Grayhill Inc. 34CMDP12B3M6QE	Non-Illuminated	Panel Mount, Right Angle	Epoxy Sealed Terminals	125 V	5.33 mm	-30 ░C	85 °C	28 V	30000 Cycles	3 A	On-On	10-48	DPDT	Brass, Chrome Plated	Standard Round	PC Pin	4.95 mm
Grayhill Inc. 34CMDP34B5M2QT	Non-Illuminated		Epoxy Sealed Terminals	125 V	10.41 mm	-30 ░C	85 °C	28 V	30000 Cycles	3 A	On-Off-On	1/4-40	DPDT	Brass, Chrome Plated	Standard Round	PC Pin	0.25 in
