18-247.035

Active

EAO

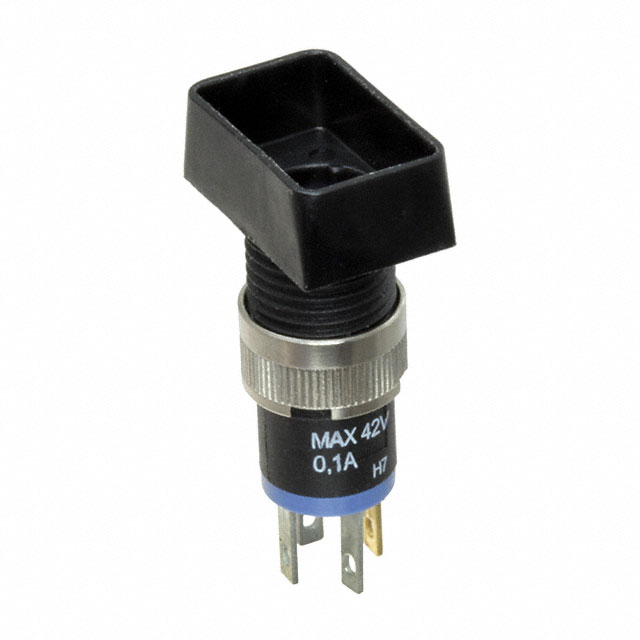

SWITCH PB SPST-NO 0.1A 42V

Search across all available documentation for this part.

Active

EAO

SWITCH PB SPST-NO 0.1A 42V

Technical Specifications

Parameters and characteristics for this part

Specification	18-247.035

Actuator Marking	No Marking
Actuator Type	Round, Button (Not Included)
Circuit	SPST-NO
Current Rating (Amps)	100 mA
Electrical Life	50000 Cycles
Ingress Protection	IP40
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	8 mm
Switch Function	Off-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	42 V
Voltage Rating - DC	42 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

SWITCH PB SPST-NO 0.1A 42V

Part	Voltage Rating - AC	Type	Panel Cutout Dimensions [diameter]	Switch Function	Voltage Rating - DC	Circuit	Mounting Type	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Current Rating (Amps)	Termination Style	Ingress Protection	Actuator Type	Actuator Marking
EAO 18-247.035	42 V	Standard	8 mm	Off-On	42 V	SPST-NO	Panel Mount, Front	1000000 Cycles	65 °C	-25 °C	50000 Cycles	100 mA	Solder Lug	IP40	Round, Button (Not Included)	No Marking

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
