1970977

Active

Phoenix Contact

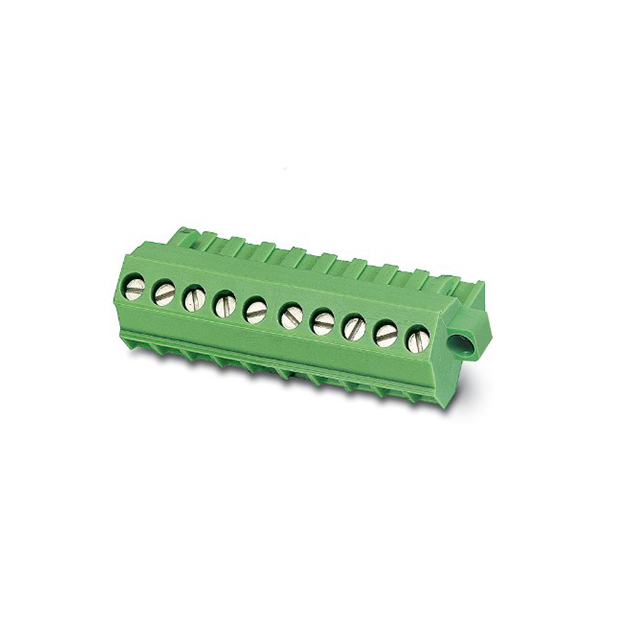

PLUGGABLE TERMINAL BLOCKS 12 POS 5MM PITCH PLUG 24-12 AWG SCREW

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 12 POS 5MM PITCH PLUG 24-12 AWG SCREW

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1970977	SMSTB Series

Color	Green	Green
Contact Mating Finish	Tin	Tin
Current - IEC	12 A	12 A
Features	Retention Latches (Non-Wire Side), Mating Flange	Retention Latches (Non-Wire Side), Mating Flange
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Insulation Height	0.61 in	0.61 in
Insulation Height	15.49 mm	15.49 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	12	12 - 19
Pitch [x]	5 mm	5 - 5.08 mm
Pitch [x]	0.197 in	0.197 - 0.2 in
Plug Wire Entry	45 °	45 - 225 °
Positions Per Level	12	12 - 19
Screw Size	M3	M3
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Torque - Screw [Max]	0.6 Nm	0.6 Nm
Torque - Screw [Max]	5.3 Lb-In	5.3 Lb-In
Torque - Screw [Min]	4.4 Lb-In	4.4 Lb-In
Torque - Screw [Min]	0.5 Nm	0.5 Nm
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - IEC	630 V	630 V
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	30 AWG	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛	-	0.2 mm˛
Wire Gauge or Range - mm˛	-	2.5 mm˛
Wire Gauge or Range - mm² [Max]	2.5 mm²	2.5 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²	0.2 mm²
Wire Strip Length	7 mm	7 mm

Pluggable Terminal Blocks 18 Pos 5.08mm pitch Plug 24-12 AWG Screw

Part	Number of Levels	Type	Voltage - IEC	Mounting Type	Voltage - UL	Wire Strip Length	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Positions Per Level	Screw Size	Color	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Housing Material	Pitch [x]	Pitch [x]	Material Flammability Rating	Current - IEC	Insulation Height	Insulation Height	Number of Positions	Plug Wire Entry	Contact Mating Finish	Termination Style	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Features
Phoenix Contact 1850576	1	Plug, Female Sockets	630 V	Free Hanging (In-Line)	300 V	7 mm	30 AWG	12 AWG	18	M3	Green	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	0.2 mm˛	2.5 mm˛	Polyamide (PA), Nylon	0.2 in	5.08 mm	UL94 V-0	12 A	0.61 in	15.49 mm	18	225 °	Tin	Screw - Rising Cage Clamp
Phoenix Contact 1970977	1	Plug, Female Sockets	630 V	Free Hanging (In-Line)	300 V	7 mm	30 AWG	12 AWG	12	M3	Green	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm			Polyamide (PA), Nylon	0.197 in	5 mm	UL94 V-0	12 A	0.61 in	15.49 mm	12	45 °	Tin	Screw - Rising Cage Clamp	0.2 mm²	2.5 mm²	Mating Flange, Retention Latches (Non-Wire Side)
Phoenix Contact 1768927	1	Plug, Female Sockets	630 V	Free Hanging (In-Line)	300 V	7 mm	30 AWG	12 AWG	19	M3	Green	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	0.2 mm˛	2.5 mm˛	Polyamide (PA), Nylon	0.197 in	5 mm	UL94 V-0	12 A	0.61 in	15.49 mm	19	225 °	Tin	Screw - Rising Cage Clamp
